| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Climatic Category | |
| Color | |
| Connector Type | |
| Contact Arrangement | |
| Contact Finish | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Installation Category | |
| Insulation Group | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Pollution Degree | |
| Primary Material | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage | |
| Salt Spray Resistance | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Temperature Range | |
| Termination | |
| Termination Style | |
| Voltage Rating |

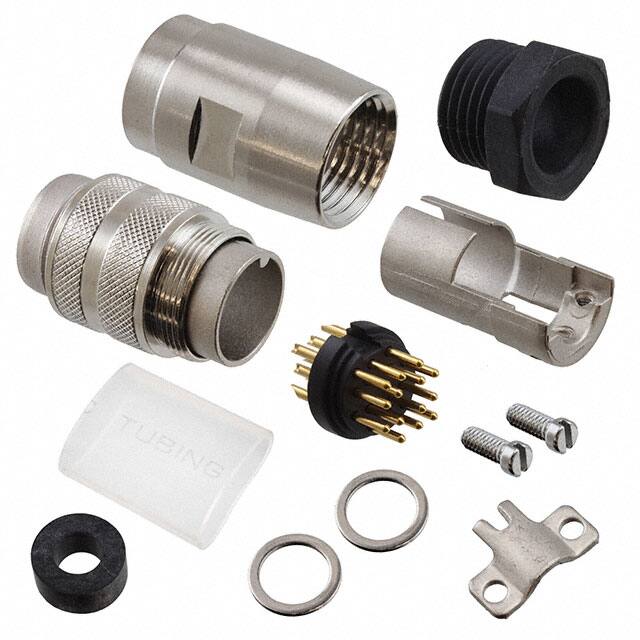

The C091 31H014 201 2 is a circular connector plug from Amphenol Tuchel Industrial, part of the C091 series. It features 14 male pin contacts with gold plating, arranged in contact arrangement 14-a per IEC 61076-2-106. The connector has a die cast metal shell with a nickel finish, providing a silver appearance and a shielded design. It includes a strain relief feature and is designed for free hanging (in-line) mounting with solder cup termination. The threaded fastening ensures a secure connection, and a keyed orientation prevents misalignment.
The connector is rated for a current of 3 A per contact (IEC 60512-5-2) and a voltage rating of 250 V (general) or 100 V (IEC 60664-1 for 14 contacts). It has an impulse withstand voltage of 1200 V, insulation resistance greater than 10^10 Ohm, and contact resistance less than 5 mOhm. The operating temperature range is -40°C to 100°C, and it meets ingress protection ratings of IP65, IP67, and IP69K, making it dust tight, water resistant, and waterproof. The cable diameter range is 6-8 mm.
This connector is suitable for industrial applications requiring reliable signal and power connections in harsh environments. It complies with RoHS3 and REACH unaffected, and has an MSL of 1 (unlimited). The connector is designed for use with cables up to 8 mm diameter and provides a robust, shielded connection.
14 positions.
3 A per contact (IEC 60512-5-2).
250 V general, 100 V (IEC 60664-1) for 14 contacts, 60 V (UL 1977).
Free Hanging (In-Line).
IP65, IP67, IP69K - dust tight, water resistant, waterproof.
-40°C to 100°C.
Gold.
