Mfr Part #:

C-BR20-AK511

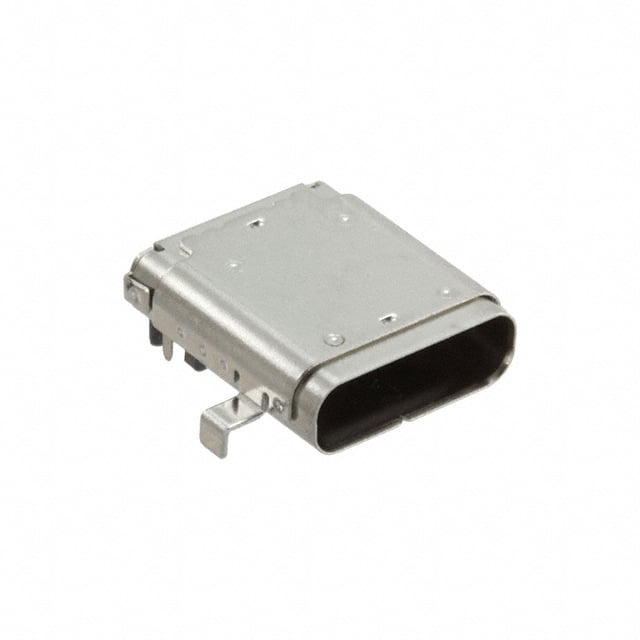

Name: C-BR20-AK511
Brand: CNC Tech
SKU: C-BR20-AK511

Mfr Name: CNC Tech

Description:

CONN RCPT USB3.1 TYPEC 24POS SMD

Stock on Request

C-BR20-AK511 Description

Short technical summary and product information.

CONN RCPT USB3.1 TYPEC 24POS SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	CNC Tech
Connector Type	USB-C (USB TYPE-C)
Current Rating (Amps)	5A
Features	Pick and Place
Gender	Receptacle
Mating Cycles	10000
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature	-40°C ~ 85°C
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
