| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Junction Temperature | |
| Lead Spacing | |
| Power Dissipation | |
| Storage Temperature | |
| Tape & Reel | |
| Thermal Resistance | |
| Weight |
The BZX85C82 is a Silicon Planar Power Zener Diode manufactured by Motorola Semiconductor, designed for voltage stabilization and clipping circuits. It offers a power dissipation of 1.3W and operates within a Zener voltage range of 3.3V to 75V, with test currents from 4 to 80 mA.

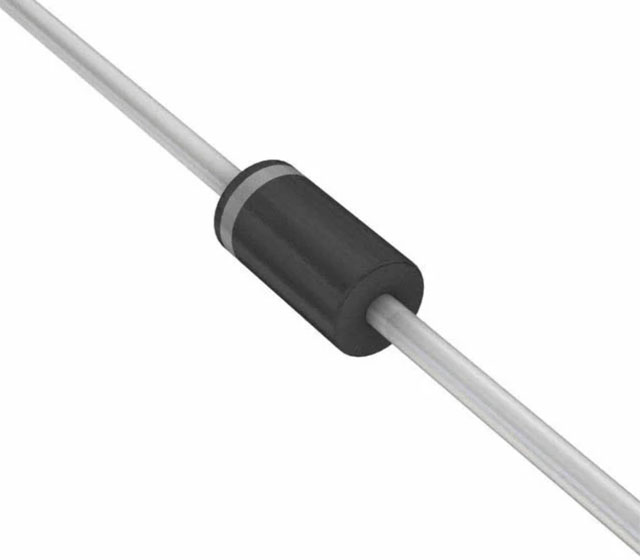

This component is housed in a DO-41 (DO-204AL) glass case, making it suitable for through-hole mounting. The diode has a junction temperature rating of 175°C and a storage temperature range of -55°C to +175°C. Its thermal resistance from junction to ambient air is 130°C/W.
The BZX85C82 is part of the BZX85 series, known for its high power rating. The Zener voltages are graded according to the international E 24 standard. This series is suitable for applications requiring stable voltage references or precise clipping functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The power dissipation of the BZX85C82 is 1.3W.
The nominal Zener voltage range for the BZX85C82 is 3.3V to 75V.
The BZX85C82 comes in a DO-41 (DO-204AL) package.
The junction temperature for the BZX85C82 is rated up to 175°C.
