| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,000 pcs
|
21000 pcs | On Request | 1 | On Request | On Request | 00+17 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

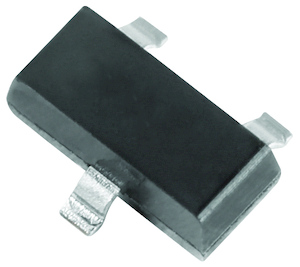

The BZX84C7V5LT1 is a 7.5V Zener voltage regulator diode from ON Semiconductor, designed for voltage regulation in space-constrained applications. It offers a nominal Zener voltage of 7.5V with ±5% tolerance and a maximum power dissipation of 225mW. The device features a maximum forward voltage of 900mV at 10mA and a maximum Zener impedance of 15Ω.
This diode provides stable voltage reference and regulation for low-power circuits. It exhibits a reverse leakage current of 1µA at 5V and is rated for operation over a junction temperature range of -65°C to 150°C. The device is housed in the industry-standard SOT-23-3 surface mount package (also designated TO-236-3/SC-59), making it suitable for automated assembly and high-density PCB designs.
With a maximum soldering temperature of 260°C for 10 seconds, the component is compatible with standard reflow soldering processes. The package is rated for flammability UL 94 V-0 and offers an ESD rating of Class 3 (>16 kV) per the Human Body Model, providing robust protection in handling and operation. These characteristics make the BZX84C7V5LT1 appropriate for voltage clamping, reference, and regulation in portable electronics, handheld devices, and other power-sensitive applications.
| Qty | Low | High |
|---|---|---|
| 7,869+ | $0.04 | $0.04 |
| 27,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 7.5V with a tolerance of ±5%.
The maximum forward voltage is 900mV at a forward current of 10mA.
The device is available in a surface mount SOT-23-3 package, also designated as TO-236-3 or SC-59.
The maximum power dissipation is 225mW.
The maximum reverse leakage current is 1µA at VR = 5V.
The junction and storage temperature range is -65°C to 150°C.
Junction-to-ambient thermal resistance is 556°C/W on FR-5 board and 417°C/W on alumina substrate.
