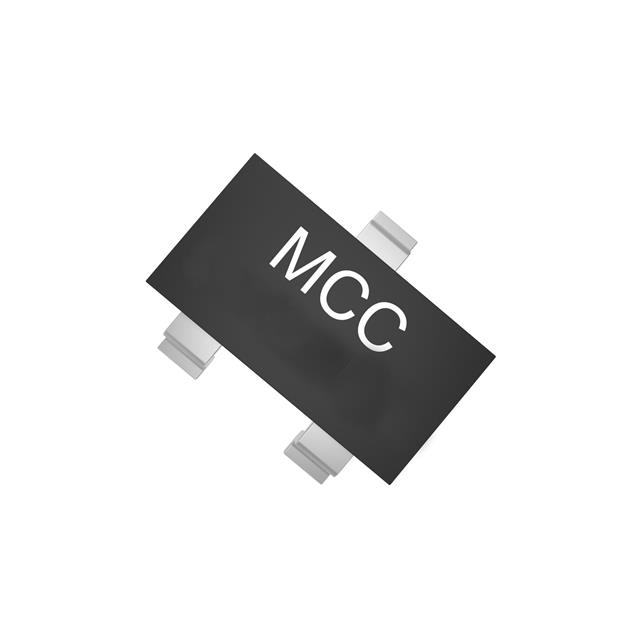

BZX84C3V3 The BZX84C3V3 is a 3.3V Zener diode from NXP Semiconductors. It features a 350mW power dissipation and is available in a surface mount SOT-23-3 package.
Mfr Part #:

BZX84C3V3

Available from 4 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The BZX84C3V3 is a 3.3V Zener diode from NXP Semiconductors. It features a 350mW power dissipation and is available in a surface mount SOT-23-3 package.
✓ Total Stock: 97,318 pcs
$ Price Range: $0.99

BZX84C3V3 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
96,221 pcs
On Request
96221 pcs On Request 1 On Request On Request 1011+ On Request On Request
Chanetech ✓
Non-Authorised Inventory information
738 pcs
On Request
738 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
248 pcs
On Request
248 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
111 pcs
On Request
111 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BZX84C3V3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
SVHC Present
Storage Temperature
Tape & Reel
Tolerance
View Similar Products (0)

BZX84C3V3 Description

Short technical summary and product information.

The BZX84C3V3 is a Zener diode manufactured by NXP Semiconductors, designed for voltage regulation and protection applications requiring a 3.3V reference or clamping voltage. It has a nominal Zener voltage of 3.3V with a tolerance of ±6% and a maximum power dissipation of 350mW.



This component operates within a temperature range of -55°C to 150°C. It features a maximum forward voltage of 900mV at 10mA and a reverse leakage current of 5µA at 1V. The impedance is rated at a maximum of 95 Ohms.



The BZX84C3V3 is designed for surface mounting and comes in a TO-236-3, SC-59, or SOT-23-3 package. Its obsolete status necessitates the use of equivalent and substitute parts for ongoing design support and procurement.

BZX84C3V3 Quick Information

Product Type: Zener Diode
Series: BZX84
Canonical Name: BZX84C3V3 Zener Diode
Subcategory: Zener Diodes

BZX84C3V3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BZX84C3V3 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

BZX84C3V3 Features

  • 3.3V nominal Zener voltage
  • 350mW maximum power dissipation
  • ±6% voltage tolerance
  • Surface mount SOT-23-3 package
  • Wide operating temperature range

BZX84C3V3 Applications

  • Voltage regulation in low-power circuits.
  • Voltage reference for analog circuits.
  • Overvoltage protection for sensitive components.
  • Clamping in signal conditioning.

BZX84C3V3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of BZX84C3V3?

3.3V nominal with ±6% tolerance.

What is the power dissipation rating?

350mW maximum.

What is the forward voltage?

900mV at 10mA.

What is the operating temperature range?

-55°C to 150°C.

What package is the BZX84C3V3 available in?

TO-236-3, SC-59, SOT-23-3 surface mount.

What is the reverse leakage current?

5µA at 1V.

What is the maximum impedance?

95 Ohms.
