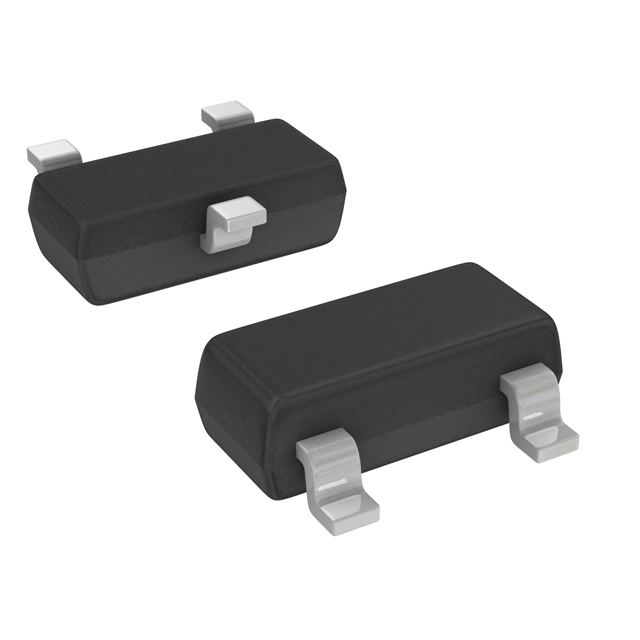

BZX84C20TA The BZX84C20TA is a 20V Zener diode from Diodes Incorporated with 350mW power dissipation in a SOT23-3 surface-mount package. It is RoHS compliant and AEC-Q101 qualified.
Mfr Part #:

BZX84C20TA

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The BZX84C20TA is a 20V Zener diode from Diodes Incorporated with 350mW power dissipation in a SOT23-3 surface-mount package. It is RoHS compliant and AEC-Q101 qualified.
✓ Total Stock: 24,000 pcs
$ Price Range: $0.30 - $0.38

BZX84C20TA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
24,000 pcs
On Request
24000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BZX84C20TA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Halogen Free
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
Power Dissipation
Storage Temperature
Tape & Reel
Termination Style
Weight
View Similar Products (0)

BZX84C20TA Description

Short technical summary and product information.

The BZX84C20TA is a 20V Zener diode from Diodes Incorporated, part of the BZX84C series of 350mW surface-mount Zener diodes. It provides a nominal Zener voltage of 20V and is designed for voltage regulation and reference applications.



With a maximum power dissipation of 350mW, this diode is suitable for low-power circuits. It comes in a compact SOT23-3 surface-mount package, manufactured with molded plastic case material and matte tin-plated terminals. The device weighs approximately 0.008g.



The BZX84C20TA is qualified to AEC-Q101 standards for high-reliability automotive applications. It is fully RoHS compliant, lead-free, and halogen-free, with a moisture sensitivity level of 1 per J-STD-020. The package meets UL94V-0 flammability rating and is solderable per MIL-STD-202 Method 208.

BZX84C20TA Quick Information

Product Type: Zener Diode
Series: BZX84C
Canonical Name: Zener Diode, 20V, 350mW, SOT23-3
Subcategory: Single Zener Diode

BZX84C20TA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

BZX84C20TA Estimated Pricing

Qty Low High
1+ $0.38 $0.38
10+ $0.36 $0.36
100+ $0.34 $0.34
1,000+ $0.32 $0.32
10,000+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

BZX84C20TA Features

  • Nominal zener voltage of 20 volts.
  • Rated for 350mW power dissipation.
  • Surface mount SOT23-3 package.
  • Qualified to AEC-Q101 standards.
  • Totally lead-free and fully RoHS compliant.

BZX84C20TA Applications

  • Suitable for voltage regulation circuits.
  • Use as voltage reference in analog designs.
  • Provides overvoltage protection to sensitive components.

BZX84C20TA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the BZX84C20TA?

The nominal Zener voltage is 20V.

What is the power dissipation rating of the BZX84C20TA?

The maximum power dissipation is 350mW.

What package is the BZX84C20TA available in?

It is available in a SOT23-3 surface-mount package.

Is the BZX84C20TA qualified for automotive use?

Yes, it is qualified to AEC-Q101 standards for high reliability.

What is the moisture sensitivity level of the BZX84C20TA?

It is MSL level 1 per J-STD-020.

Is the BZX84C20TA RoHS compliant?

Yes, it is RoHS3 compliant and lead-free.

What is the voltage range of the BZX84C series?

The series covers Zener voltages from 2.4V to 51V.
