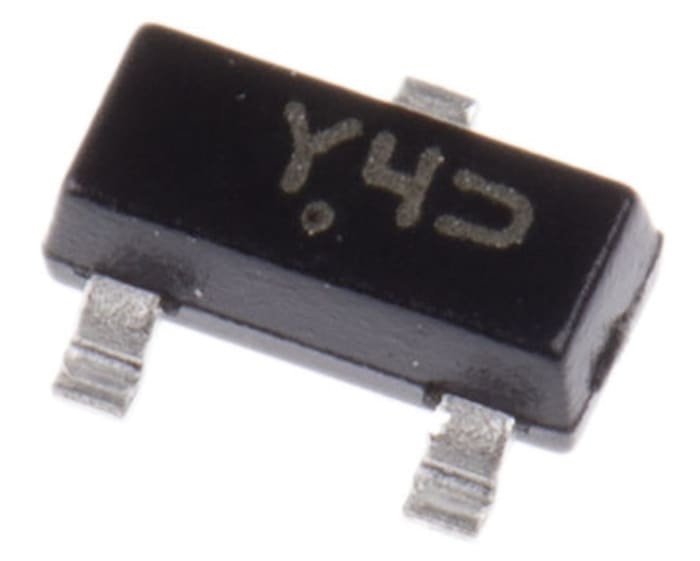

The BZX84C15LT1G is a 15V Zener diode from onsemi's BZX84CxxxLT1G series, designed for voltage regulation in space-constrained applications. It is rated for a maximum power dissipation of 250mW on FR-4 or FR-5 boards.
Key electrical characteristics include a nominal Zener voltage of 15V with ±6% tolerance, a maximum forward voltage of 900mV at 10mA, and a maximum reverse leakage current of 50nA at 10.5V. The device features a maximum Zener impedance of 30Ω and an operating temperature range of -65°C to 150°C.
The diode is housed in a void-free, transfer-molded thermosetting plastic SOT-23-3 (TO-236) package suitable for surface mount assembly. It has an ESD rating of Class 3 (>16 kV) per the Human Body Model and is supplied in tape and reel packaging with 3,000 units per reel.
The nominal Zener voltage is 15V with a tolerance of ±6%.
The maximum power dissipation is 250mW.
It is available in a SOT-23-3 (TO-236) surface mount package.
The maximum forward voltage is 900mV at a test current of 10mA.
The operating temperature range is -65°C to 150°C (junction).
