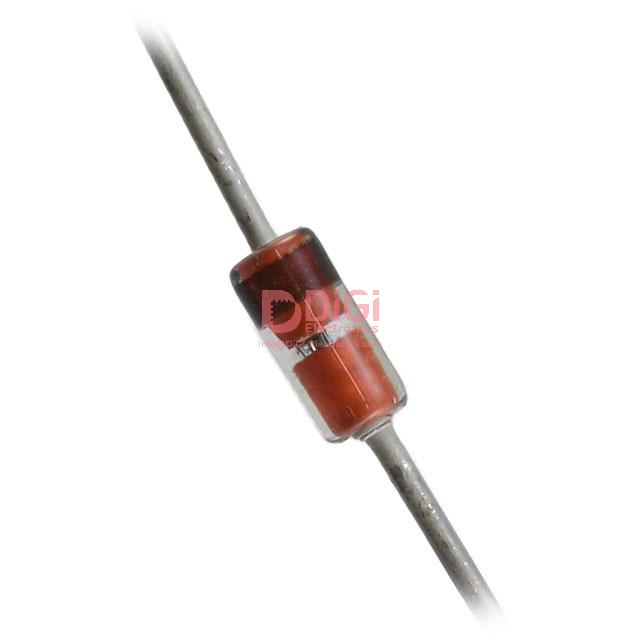

BZX79C27 The onsemi BZX79C27 is a Zener diode with a 27V nominal voltage and 500mW power rating. It features a ±5% tolerance and is housed in a through-hole DO-35 package.
Mfr Part #:

BZX79C27

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The onsemi BZX79C27 is a Zener diode with a 27V nominal voltage and 500mW power rating. It features a ±5% tolerance and is housed in a through-hole DO-35 package.
✓ Total Stock: 72 pcs
$ Price Range: $0.99

BZX79C27 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
72 pcs
On Request
72 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BZX79C27 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Operating Temperature
Storage Temperature
Supplier Device Package
Tolerance
View Similar Products (0)

BZX79C27 Description

Short technical summary and product information.

This onsemi BZX79C27 is a Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 27V with a tight tolerance of ±5%. The diode can dissipate a maximum power of 500mW.



Featuring a low reverse leakage current of 50 nA at 18.9V and a forward voltage of 1.5V at 100mA, this component is suitable for various electronic circuits. The operating temperature range is from -65°C to 200°C, ensuring reliability in diverse environmental conditions.



The BZX79C27 is packaged in a standard DO-35 (DO-204AH, Axial) through-hole package, making it easy to integrate into printed circuit boards. Its impedance is rated at a maximum of 80 Ohms.



Environmental compliance includes REACH Unaffected status and MSL 1 Unlimited. This Zener diode is a reliable choice for applications requiring stable voltage references.

BZX79C27 Quick Information

Product Type: Zener Diode
Series: BZX79
Canonical Name: BZX79C27 27V 500mW Zener Diode
Subcategory: Zener Diodes

BZX79C27 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BZX79C27 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

BZX79C27 Features

  • 27V nominal Zener voltage rating.
  • 500mW maximum power dissipation.
  • ±5% voltage tolerance.
  • Wide -65°C to 200°C operating temperature.
  • DO-35 through-hole package.

BZX79C27 Applications

  • Suitable for voltage regulation circuits.
  • Used in overvoltage protection applications.
  • Ideal for general purpose Zener applications.
  • Can be integrated into power supply designs.
  • Applicable in temperature-sensitive environments.

BZX79C27 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the BZX79C27?

The nominal Zener voltage (Vz) of the BZX79C27 is 27V.

What is the voltage tolerance of the BZX79C27?

The voltage tolerance of the BZX79C27 is ±5%.

What is the maximum power dissipation of the BZX79C27?

The maximum power dissipation of the BZX79C27 is 500mW.

What is the maximum impedance of the BZX79C27?

The maximum impedance (Zzt) of the BZX79C27 is 80 Ohms.

What is the reverse leakage current of the BZX79C27?

The reverse leakage current is 50nA at 18.9V.

What is the maximum forward voltage of the BZX79C27?

The maximum forward voltage (Vf) is 1.5V at 100mA.

What is the operating temperature range for the BZX79C27?

The operating temperature range is -65°C to 200°C.
