| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89,500 pcs
|
89500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
42,540 pcs
|
42540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance @ Frequency | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Package / Case | |
| Peak Pulse Current | |
| Peak Pulse Power | |
| Power | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Termination Style | |
| Type | |
| Unidirectional Channels | |
| Voltage |

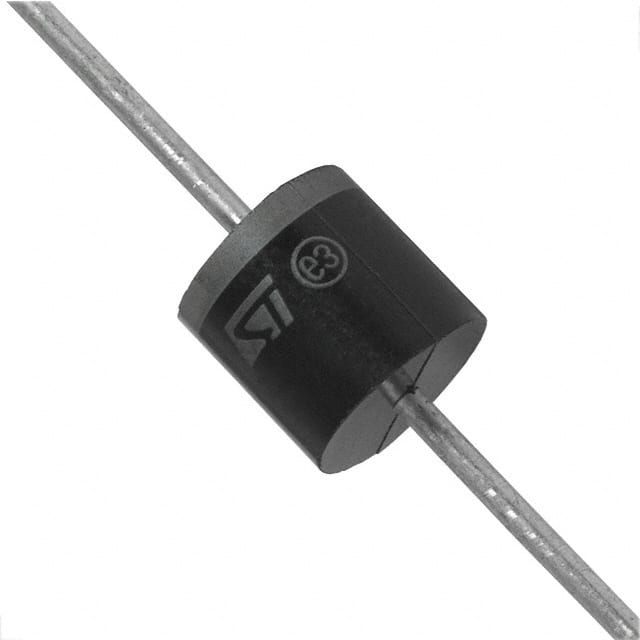

The BZW50-68 is a unidirectional Zener TVS diode from STMicroelectronics designed for general purpose transient voltage suppression. It has a reverse standoff voltage of 68V and a clamping voltage of 157V at a peak pulse current of 382A under an 8/20µs waveform. The device can handle a peak pulse power of 5000W (5kW).
Key electrical characteristics include a capacitance of 3000pF at 1MHz. The diode is not intended for power line protection. It is packaged in an R-6, Axial case with through-hole mounting and axial termination. The supplier device package is R-6.
This TVS diode is suitable for protecting sensitive electronic circuits from voltage transients in a variety of applications. The component is RoHS3 compliant, REACH unaffected, and has an MSL level of 1 (unlimited). Note that the datasheet is not available and some compliance data is unverified.
The reverse standoff voltage is 68V.
The clamping voltage is 157V.
The peak pulse current is 382A under an 8/20µs waveform.
The BZW50-68 is available in an R-6, Axial through-hole package.
The peak pulse power is 5000W (5kW).
It is a unidirectional TVS diode with 1 unidirectional channel.
The capacitance is 3000pF at 1MHz.
