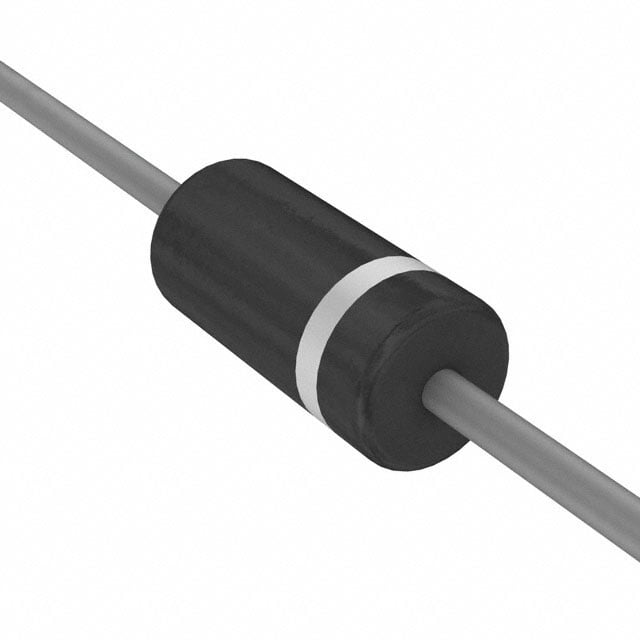

The BZW06-37BRL is a bidirectional Transil TVS diode from STMicroelectronics designed for transient overvoltage protection. It provides a peak pulse power of 600 W for a 10/1000 µs waveform, with a stand-off voltage of 36.8 V and a minimum breakdown voltage of 40.9 V at 1 mA. The clamping voltage is specified at 59.3 V for a 10.1 A peak pulse current (10/1000 µs) and 76 V for a 53 A pulse (8/20 µs).
This device features a bidirectional configuration with one channel and a low reverse leakage current of 0.2 µA at maximum stand-off voltage. It operates over a junction temperature range of -55°C to 175°C and has a typical capacitance of 850 pF at 1 MHz. The thermal resistance from junction to lead is 60 °C/W.
The BZW06-37BRL is available in a through-hole DO-15 (DO-204AC) axial package. It is RoHS3 compliant and rated MSL level 1 unlimited. This part is suitable for protecting voltage-sensitive circuits from transient overvoltages caused by lightning, ESD, or switching events.
The peak pulse power is 600 W for a 10/1000 µs waveform.
The maximum stand-off voltage is 36.8 V.
The minimum breakdown voltage is 40.9 V at 1 mA.
The clamping voltage is 59.3 V maximum at 10.1 A (10/1000 µs) and 76 V maximum at 53 A (8/20 µs).
It comes in a through-hole DO-15 (DO-204AC) axial package.
The maximum reverse leakage current is 0.2 µA at the stand-off voltage of 36.8 V.
