| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
324,320 pcs
|
324320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage | |
| Voltage - Forward (Vf) (Max) @ If |

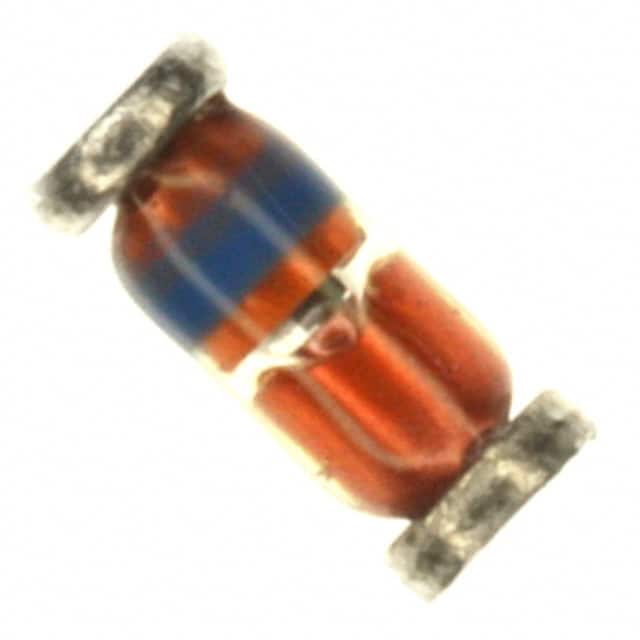

The BZV55C5V6-TP is a 5.6V Zener diode from Micro Commercial Components in a Mini MELF surface mount package. It offers a nominal Zener voltage of 5.6V with ±7% tolerance and a maximum power dissipation of 500mW. The device features a maximum impedance of 25Ω at 5mA test current and a reverse leakage current of 100nA at 1V reverse voltage. The forward voltage drop is 1.5V maximum at 200mA forward current. Operating junction temperature range is -55°C to +175°C with storage temperature range identical. The diode is housed in a DO-213AC / MINI-MELF / SOD-80 package, suitable for surface mount assembly. It is lead-free and RoHS compliant with MSL 1 (unlimited) moisture sensitivity. This Zener diode is suitable for voltage regulation and protection circuits in various electronic applications.
| Qty | Low | High |
|---|---|---|
| 2,500+ | $0.02 | $0.02 |
| 5,000+ | $0.02 | $0.02 |
| 12,500+ | $0.02 | $0.02 |
| 25,000+ | $0.02 | $0.02 |
| 62,500+ | $0.02 | $0.02 |
| 65,535+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5.6V.
500mW maximum.
±7%.
1.5V at 200mA forward current.
-55°C to +175°C junction temperature.
Mini MELF (DO-213AC / SOD-80) surface mount package.
Yes, it has lead-free finish and is RoHS compliant per datasheet.
