| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,160 pcs
|
1160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Impedance (Max) (Zzt) | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage | |
| Voltage - Zener (Nom) (Vz) |

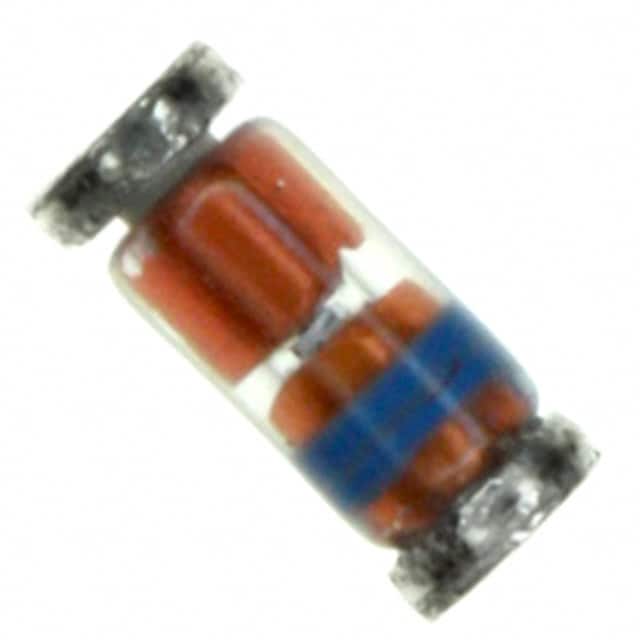

The BZV55C15-TP is a 15V Zener diode from Micro Commercial Components, designed for voltage regulation and protection in surface mount applications. It offers a nominal Zener voltage of 15V with a tolerance of ±5%, and a maximum power dissipation of 500mW.
Electrical characteristics include a maximum impedance of 30Ω at 5mA, a maximum reverse leakage current of 100nA at 11V, and a maximum forward voltage of 1.5V at 200mA. The device operates over a junction temperature range of -55°C to +150°C.
Packaged in a Mini MELF (DO-213AC / SOD-80) surface mount package, the BZV55C15-TP is suitable for automated assembly processes. It is lead-free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 2,500+ | $0.07 | $0.07 |
| 5,000+ | $0.06 | $0.06 |
| 7,500+ | $0.06 | $0.06 |
| 12,500+ | $0.06 | $0.06 |
| 17,500+ | $0.05 | $0.05 |
| 25,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 15V.
The maximum power dissipation is 500mW.
The tolerance is ±5%.
It is available in a Mini MELF (DO-213AC / SOD-80) surface mount package.
The maximum forward voltage is 1.5V at 200mA.
The operating temperature range is -55°C to +150°C.
