| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
2,590 pcs
|
2590 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diode Configuration | |
| Height | |
| Length | |
| Mounting Type |

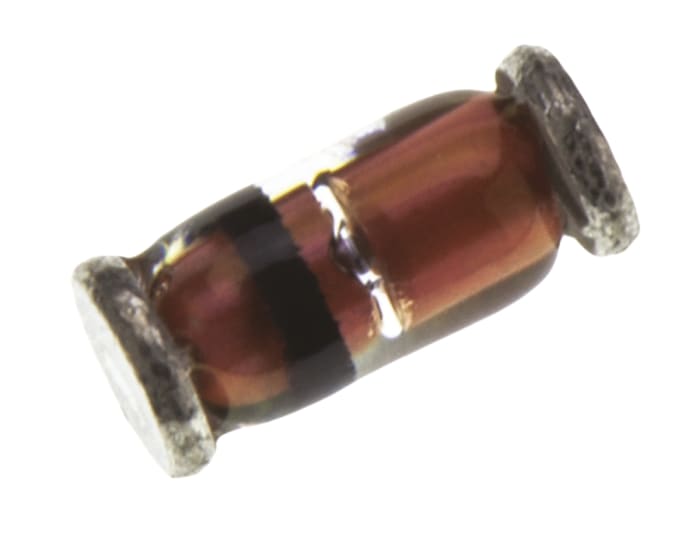

The Nexperia BZV55-C5V1 is a single Zener diode designed for voltage regulation applications. It features a nominal Zener voltage of 5.1V with a tolerance of ±5%, and a maximum power dissipation of 500mW. The diode is configured as a single element per chip.
This component is suitable for operation across a wide temperature range, from -65°C to 200°C. It has a maximum reverse leakage current of 2μA at a test current of 5mA. The typical voltage temperature coefficient is -0.8mV/°C.
The BZV55-C5V1 is packaged in a surface-mount SOD-80 case, with dimensions of 3.7mm in length and 1.6mm in height. It has 2 pins. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 5.1V at a test current of 5mA.
The maximum power dissipation is 500mW.
The package type is SOD-80.
The operating temperature range is from -65°C to 200°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
