| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
381 pcs
|
381 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
378 pcs
|
378 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Impedance (Max) (Zzt) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

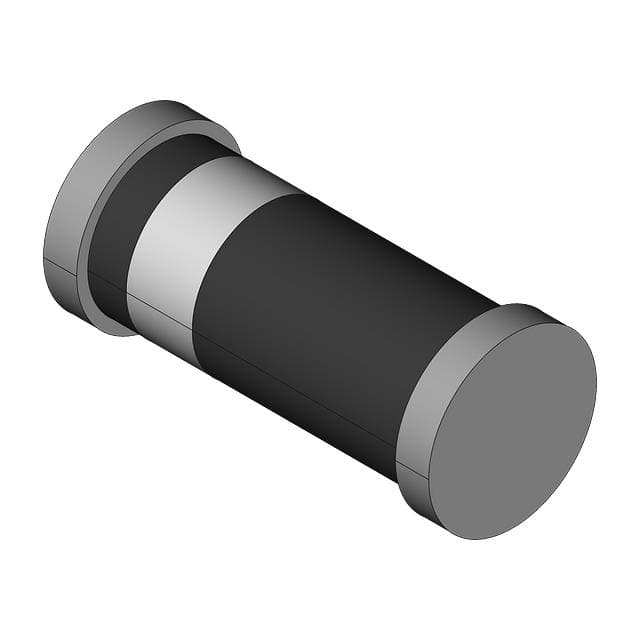

The BZV55-C15,115 is a single Zener diode from Nexperia, designed for voltage regulation and protection applications. It features a nominal Zener voltage of 15V with a tolerance of ±5%, ensuring precise voltage clamping. The diode can dissipate up to 500mW of power, making it suitable for low-power circuits.
With a maximum Zener impedance of 30Ω and a reverse leakage current of only 50nA at 10.5V, this diode offers stable performance. The forward voltage is 900mV at 10mA. It operates over a wide temperature range from -65°C to 200°C, accommodating harsh environments.
The device is housed in a surface mount DO-213AC (SOD-80) package, also known as MiniMELF, and is supplied in tape and reel packaging for automated assembly. Its compact size and robust electrical characteristics make it ideal for use in power management, signal clamping, and voltage reference circuits.
The nominal Zener voltage is 15V.
The maximum power dissipation is 500mW.
The tolerance is ±5%.
The package is DO-213AC, also known as MINI-MELF or SOD-80, and it is surface mount.
The operating temperature range is -65°C to 200°C.
The maximum reverse leakage current is 50nA at a reverse voltage of 10.5V.
The maximum forward voltage is 900mV at a forward current of 10mA.
