BZV55-C5V6,115
NXP Semiconductors
The NXP Semiconductors BZV55-C5V6,115 is a Zener diode featuring a 5.6V nominal voltage and 500mW power dissipation. It is designed for voltage regulation applications.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,271 pcs
|
2271 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,271 pcs
|
2271 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature |

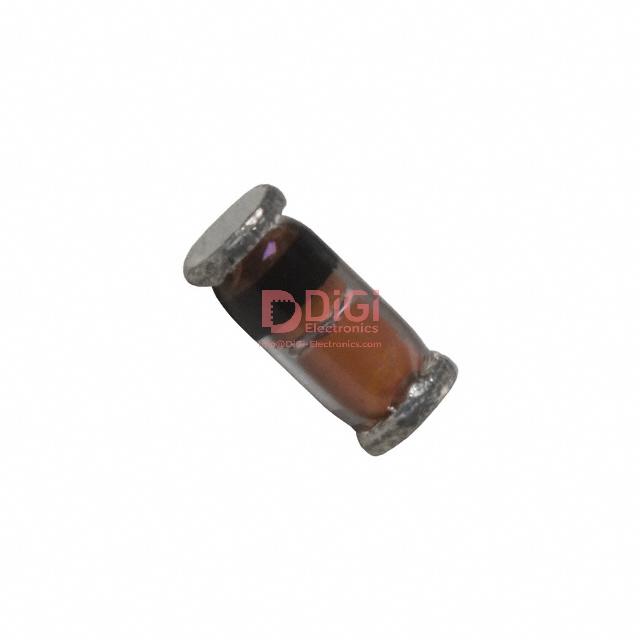

The NXP Semiconductors BZV55-B12,135 is a Zener Diode designed for various electronic applications. It offers a nominal Zener voltage of 12V with a tolerance of ±5%, ensuring stable voltage regulation.
This component has a maximum power dissipation rating of 500mW, making it suitable for low-power circuits. The diode features a low forward voltage of 900mV at 10mA and a reverse leakage current of 100nA at 8V. Its impedance is rated at a maximum of 25 Ohms.
The operating temperature range for the BZV55-B12,135 is from -65°C to 200°C. It is housed in a surface mount package, specifically DO-213AC, MINI-MELF, or SOD-80, with a supplier device package designation of LLDS; MiniMelf. The product status is active.
This Zener Diode is supplied in Tape & Reel (TR) packaging, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 12V.
The maximum power dissipation is 500mW.
The voltage tolerance is ±5%.
It is in a surface mount package, specifically DO-213AC, MINI-MELF, or SOD-80.
The operating temperature range is -65°C to 200°C.
