| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Features | |
| Termination | |
| Voltage Rating |

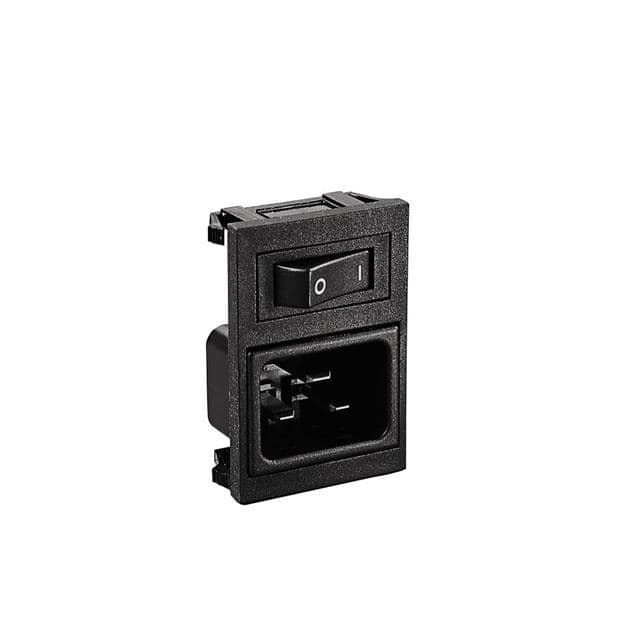

The Bulgin BZV49/Z0000/01 is a power entry module designed for AC power connections. It provides an IEC 320-C20 male blade receptacle in a panel mount, snap-in package. This module is rated for 16A continuous current at 250VAC. It is an unfiltered commercial-grade module, suitable for applications where EMI filtering is not required. The module includes a single-pole on-off switch for convenient power control. Termination is via quick connect tabs of 0.250" (6.3mm) size. The panel cutout is rectangular, 34.40mm x 56.00mm, and accepts panel thicknesses from 1.00mm to 3.00mm. The housing is made of material with UL94 V-0 flammability rating. This module does not accommodate a fuse. It is approved by CSA, ENEC, UL, and VDE agencies. The module is designed for easy snap-in installation, reducing assembly time.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.67 | $29.67 |
| 200+ | $11.84 | $11.84 |
| 500+ | $11.44 | $11.44 |
| 1,000+ | $11.25 | $11.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16A.
250VAC.
IEC 320-C20 receptacle.
Panel mount, snap-in.
Yes, an on-off switch.
3 positions.
CSA, ENEC, UL, VDE.
