| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating |

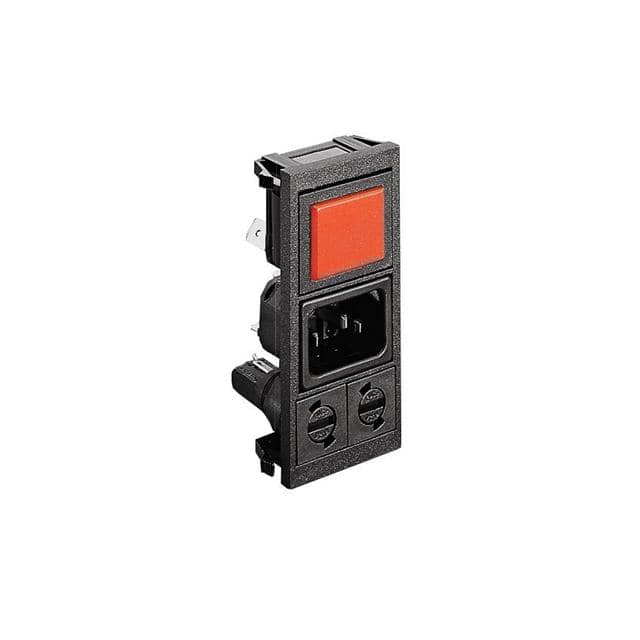

The BZV03/Z0000/06 is a power entry module from Bulgin Components featuring an IEC 320-C14 connector style. It is a receptacle with male blades designed for panel mount snap-in installation. The module includes an on-off switch and a twin fuse holder accommodating two fuses (fuses not included).
Electrical ratings are 10A nominal current and 250VAC nominal voltage. The termination style is quick connect using 0.250" (6.3mm) tabs. The panel cutout is rectangular measuring 34.40mm x 76.50mm and accepts panel thickness from 1.00mm to 3.00mm.
The housing material has a UL94 V-0 flammability rating. The module is unfiltered and intended for commercial applications. It holds approvals from CSA, ENEC, UL, and VDE.
The nominal current rating is 10A.
The nominal voltage rating is 250VAC.
Panel mount, snap-in.
Yes, it has a twin fuse holder. Fuses are not included.
Rectangular cutout 34.40mm x 76.50mm.
Quick connect - 0.250" (6.3mm).
CSA, ENEC, UL, VDE.
