| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Switch Features | |
| Termination | |
| Termination Style | |
| Voltage Rating |

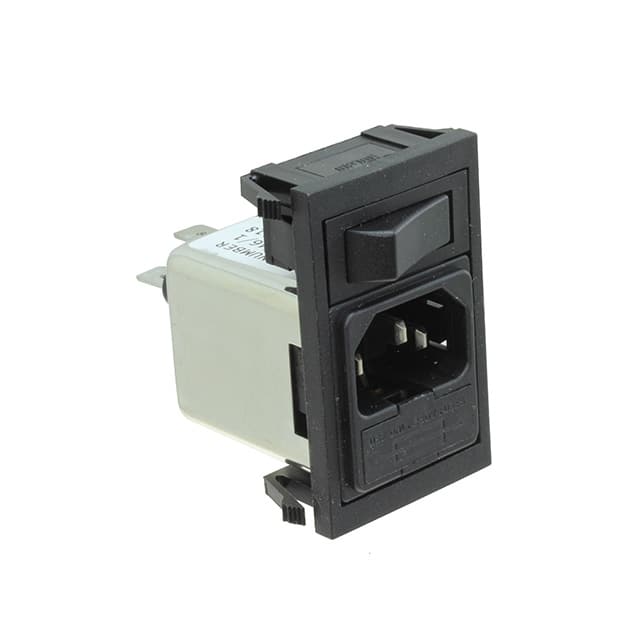

The BZV01/A0620/01 is a panel-mount power entry module from Bulgin Components, featuring an IEC 320-C14 receptacle with male blades. It is a filtered (EMI/RFI) commercial-grade module, designed to suppress electrical noise in power lines.
The module includes a single-pole On-Off switch and accommodates a fuse (fuse not included) for overcurrent protection. It is rated for 6A at 250VAC and terminates via quick connect tabs (0.250" / 6.3mm).
Mounting is by snap-in panel installation into a rectangular cutout of 34.40mm x 56.60mm, accommodating panels 1.00mm to 3.00mm thick. The housing material is rated UL94 V-0 for flammability.
Approved by CSA, ENEC, UL, and VDE, this module is suited for industrial and commercial equipment requiring a compact, integrated mains input with filtering and switching.
The BZV01/A0620/01 is rated for 6 A.
The voltage rating is 250 VAC.
It is panel mounted via snap-in installation.
