| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,020 pcs
|
4020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Forward Voltage | |
| Halogen Free | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage | |
| Weight |

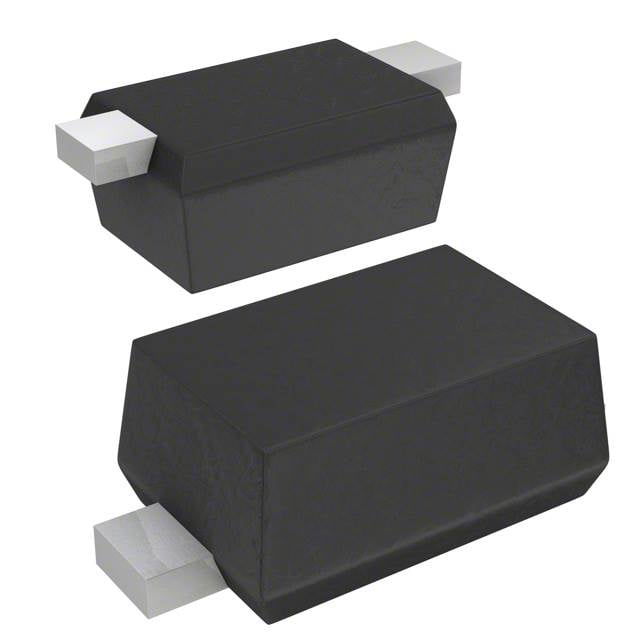

The BZT585B20T-7 is a surface mount precision zener diode from Diodes Incorporated, offering a nominal zener voltage of 20V with a tight ±2% tolerance. It is designed for general purpose voltage regulation and clamping applications where small footprint and low profile are required.
The device has a maximum power dissipation of 350mW and a maximum reverse leakage current of 50nA at 14V. It features a maximum forward voltage of 1.1V at 100mA and a typical impedance (Zzt) of 55Ω. The operating temperature range spans -65°C to 150°C, covering most industrial and automotive environments.
The BZT585B20T-7 is offered in the SOD523 package with matte tin annealed leads over an Alloy 42 leadframe. The case is molded plastic, green molding compound, with UL 94V-0 flammability rating. It is RoHS compliant, lead-free, halogen and antimony free, and qualified to AEC-Q101 standards for high reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.14 | $0.14 |
| 100+ | $0.10 | $0.10 |
| 500+ | $0.09 | $0.09 |
| 3,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20V
±2%
350mW
SOD-523 (SC-79) surface mount package
1.1V at 100mA
50nA at VR=14V
-65°C to 150°C
