BZT52C10TQ-7-F

The BZT52C10TQ-7-F is a surface mount Zener diode from Diodes Incorporated, designed for voltage regulation and clamping applications. It has a nominal Zener voltage of 10V with a tolerance of ±6%, and a maximum power dissipation of 300mW. The diode features a low forward voltage of 900mV at 10mA forward current, and a reverse leakage current of 200nA at 7V reverse voltage. The maximum Zener impedance is 20Ω.

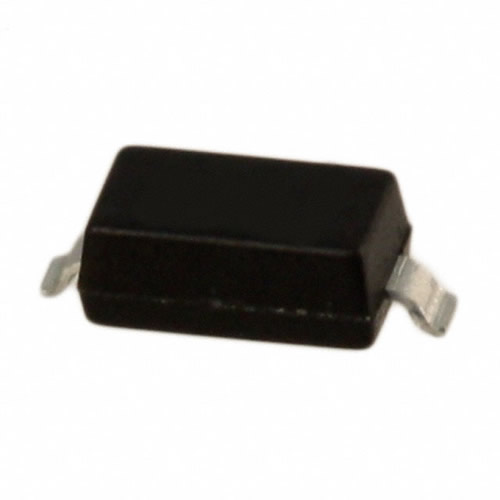

The device is packaged in a compact SOD-523 surface mount package, which is ideal for space-constrained designs. The package is rated with a moisture sensitivity level of 1 (unlimited), and the device is fully RoHS compliant, lead-free, and halogen-free, meeting modern environmental standards. The operating temperature range is -65°C to 150°C, with thermal resistance of 417°C/W junction-to-ambient and 160°C/W junction-to-case.

Typical applications include voltage regulation, overvoltage protection, and reference voltage generation in consumer electronics, automotive systems, and industrial controls. The device is qualified to AEC-Q101 standards for high reliability, suitable for automotive applications. The SOD-523 package allows for efficient heat dissipation and high power density in low-profile designs.
