| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,336 pcs
|
8336 pcs | On Request | 1 | On Request | On Request | 1807+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Voltage |

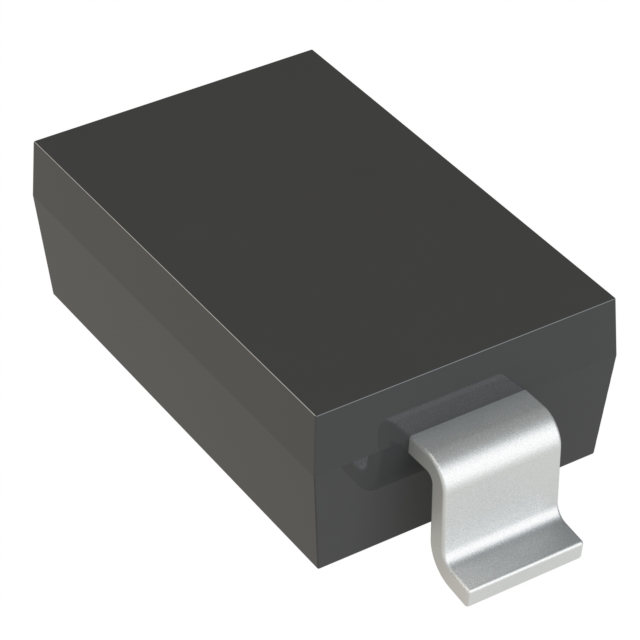

The BZT52B18-G RHG is a Zener diode from Taiwan Semiconductor designed for voltage regulation and protection applications. It features a nominal Zener voltage of 18V with a tight ±2% tolerance, ensuring precise voltage reference. The device can dissipate up to 410mW of power, making it suitable for low-power circuits. Maximum impedance (Zzt) is 45 Ohms, and forward voltage is 900mV at 10mA. Reverse leakage current is limited to 100nA at 12.6V. The diode operates over a wide temperature range from -55°C to 150°C. It is housed in a surface mount SOD-123 package, which is compact and suitable for automated assembly. This component is commonly used in voltage clamping, overvoltage protection, and reference voltage generation in consumer, industrial, and automotive electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
| 10+ | $0.15 | $0.15 |
| 100+ | $0.10 | $0.10 |
| 500+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 18V with a tolerance of ±2%.
The maximum forward voltage is 900mV at a test current of 10mA.
It is available in a surface mount SOD-123 package.
The maximum power dissipation is 410mW.
The maximum impedance (Zzt) is 45 Ohms.
The maximum reverse leakage current is 100nA at a reverse voltage of 12.6V.
The operating temperature range is -55°C to 150°C (junction temperature).
