| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,980 pcs
|
43980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Failure Rate | |
| For Use With | |
| SVHC Present | |
| Termination Style |

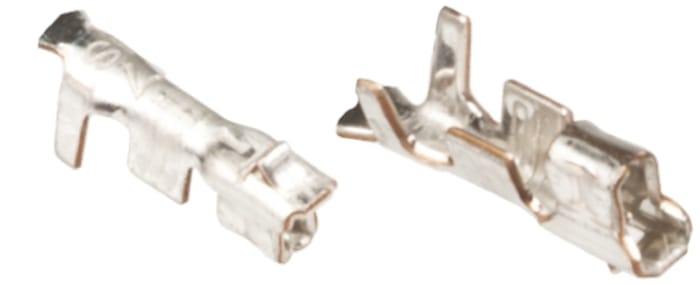

The JST BZH-002T-P0.5 is a female crimp terminal belonging to the ZH series. It is constructed with phosphor bronze contacts plated with tin, ensuring reliable electrical connections. This terminal is designed to accommodate wire sizes ranging from a minimum of 28 AWG (0.08mm²) up to a maximum of 26 AWG (0.13mm²).
With a current rating of 1A and a maximum contact resistance of 20mΩ, it is suitable for various electronic applications. The operating temperature range for this component is from -25°C to 85°C. The termination style is crimp, and it is intended for use with ZH connector housings.
Packaged in multiples of 100, these terminals are recommended for ordering in large quantities and are prepared for insertion into machinery, aiming to improve production efficiency. The country of origin is the United Kingdom.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JST BZH-002T-P0.5 crimp terminal supports a minimum wire size of 28 AWG (0.08mm²) and a maximum wire size of 26 AWG (0.13mm²).
The JST BZH-002T-P0.5 terminal has a current rating of 1A.
The JST BZH-002T-P0.5 crimp terminal can operate within a temperature range of -25°C to 85°C.
The JST BZH-002T-P0.5 terminal features phosphor bronze contacts with tin plating.
The maximum contact resistance for the JST BZH-002T-P0.5 is 20mΩ.
