| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
146 pcs
|
146 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diode Type | |
| Mounting Type | |
| Reverse Recovery Time | |
| Storage Temperature | |
| Tape & Reel |

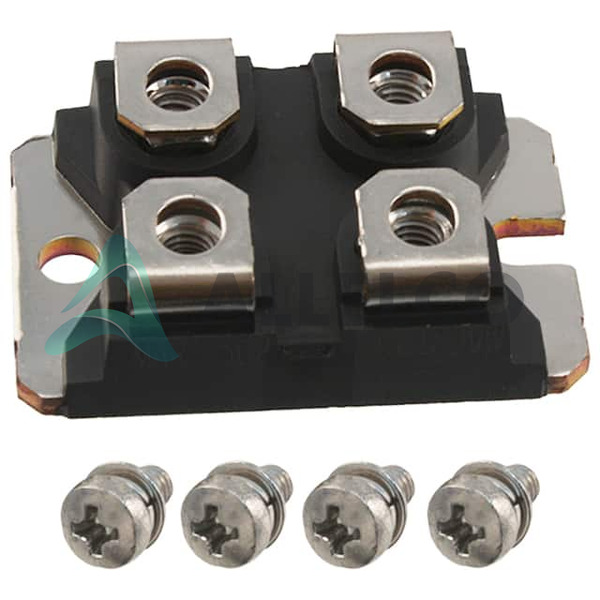

The STMicroelectronics BYV54V-200 is a general-purpose diode module designed for rectification in high current, low voltage applications. It can handle up to 50A current per diode and has a maximum reverse voltage of 200V. The device is built in an ISOTOP chassis mount package, providing strong mechanical stability and easy cooling. The module includes two independent diodes for more flexible circuit configurations.
Key specifications include a maximum reverse voltage of 200V, a maximum forward voltage drop of 850mV at 50A, and a reverse recovery time of 60ns. The reverse leakage current is a maximum of 50µA at 200V. This fast recovery diode is suitable for high-frequency circuits and applications requiring robust, reliable power rectification.
Applications include high power rectifiers, freewheeling circuits, power supplies, inverters, welding equipment, battery chargers, and motor drive applications. The ISOTOP package is designed for chassis mounting, aiding in efficient heat dissipation when used with a heatsink.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage for the BYV54V-200 is 200V.
The average rectified current per diode for the BYV54V-200 is 50A.
The forward voltage drop of the BYV54V-200 is a maximum of 850mV at 50A.
The reverse recovery time of the BYV54V-200 is 60ns.
The BYV54V-200 uses the ISOTOP package.
The BYV54V-200 is chassis mounted.
