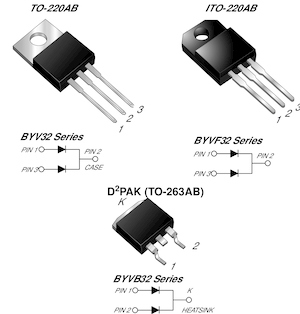

BYV32-150-E3/45 Dual common-cathode ultrafast rectifier rated for 150V reverse voltage and 18A average rectified current. Features 25ns reverse recovery time and low forward voltage drop of 0.85V typical.
Mfr Part #:

BYV32-150-E3/45

Available from 1 distributors
Mfr Name: Vishay
Vishay
Dual common-cathode ultrafast rectifier rated for 150V reverse voltage and 18A average rectified current. Features 25ns reverse recovery time and low forward voltage drop of 0.85V typical.
✓ Total Stock: 2,670 pcs
$ Price Range: $1.19 - $3.59

BYV32-150-E3/45 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,670 pcs
On Request
2670 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BYV32-150-E3/45 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Halogen Free
Lead Style
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Tape & Reel
Technology
Termination Style
Voltage
View Similar Products (0)

BYV32-150-E3/45 Description

Short technical summary and product information.

The BYV32-150-E3/45 is a dual common-cathode ultrafast rectifier designed for high frequency rectification in power supplies and converters. It features a repetitive peak reverse voltage of 150V and an average rectified current of 18A. The device offers a typical forward voltage of 0.85V under pulse test conditions and a fast reverse recovery time of 25ns, enabling low switching losses. It can handle non-repetitive peak surge currents up to 150A. The rectifier is housed in a TO-220-3 through-hole package with matte tin plated leads, suitable for easy mounting on PCBs. It is RoHS3 compliant and meets MSL level 1. The part is commercial grade and not halogen free. Typical applications include switching mode power supplies, inverters, freewheeling diodes, and DC/DC converters.

BYV32-150-E3/45 Quick Information

Product Type: Rectifier Diode Array
Series: BYV32
Canonical Name: Vishay BYV32-150-E3/45 Dual Common-Cathode Ultrafast Rectifier
Subcategory: Rectifier Arrays

BYV32-150-E3/45 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BYV32-150-E3/45 Estimated Pricing

Qty Low High
1+ $3.59 $3.59
10+ $2.34 $2.34
100+ $1.64 $1.64
500+ $1.37 $1.37
1,000+ $1.27 $1.27
2,000+ $1.19 $1.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

BYV32-150-E3/45 Features

  • Dual common-cathode configuration for compact design.
  • Rated for 150V reverse voltage and 18A current.
  • Ultrafast 25ns reverse recovery time.
  • Low forward voltage drop of 0.85V typical.
  • TO-220-3 through-hole package for easy mounting.

BYV32-150-E3/45 Applications

  • Used in switching mode power supplies.
  • Ideal for freewheeling diode applications.
  • Suitable for DC/DC converters and inverters.
  • High frequency rectification in power electronics.

BYV32-150-E3/45 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse voltage rating of BYV32-150-E3/45?

150V.

What is the average rectified current rating?

18A.

What is the forward voltage drop?

0.85V typical under pulse test (300μs, 1% duty).

What is the reverse recovery time?

25ns.

What package is the device available in?

TO-220-3 (TO-220AB) through-hole.

What is the surge current capability?

150A non-repetitive peak forward surge current.

What is the operating junction temperature range?

-65°C to 150°C.
