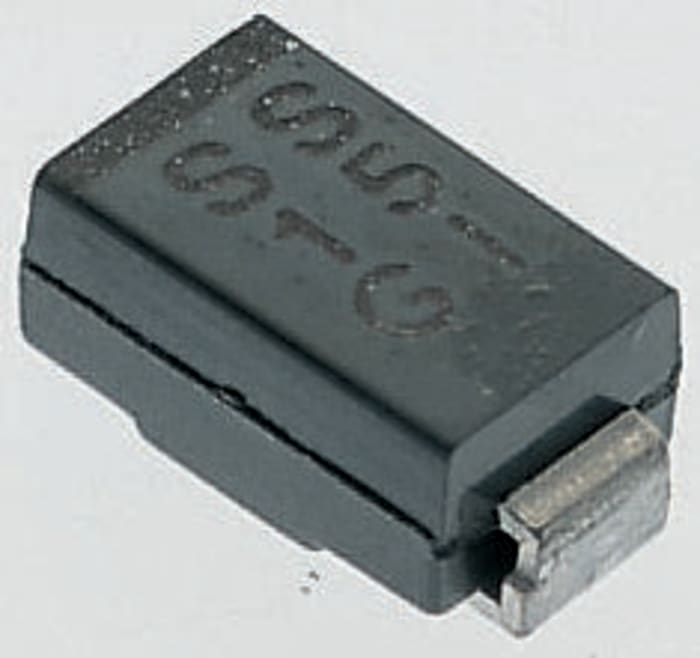

BYG10G The Vishay BYG10G-E3/TR is a 400V, 1.5A switching diode in a DO-214AC surface mount package. It offers a maximum forward voltage of 1.15V.
Mfr Part #:

BYG10G

Available from 1 distributors
Mfr Name: LGE
LGE
The Vishay BYG10G-E3/TR is a 400V, 1.5A switching diode in a DO-214AC surface mount package. It offers a maximum forward voltage of 1.15V.
✓ Total Stock: 1,540 pcs
$ Price Range: $0.99

BYG10G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,540 pcs
On Request
1540 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BYG10G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
View Similar Products (0)

BYG10G Description

Short technical summary and product information.

This Vishay BYG10G-E3/TR is a single switching diode designed for various electronic applications. It features a peak reverse repetitive voltage rating of 400V and a maximum continuous forward current of 1.5A.



The diode has a maximum forward voltage of 1.15V and a peak reverse recovery time of 4µs. It operates within a temperature range of -55°C to 150°C.



Packaged in a DO-214AC surface mount case, this component has a height of 2.09mm and a length of 4.5mm. It is suitable for applications requiring reliable rectification and switching.



Key electrical characteristics include a peak reverse current of 1µA and a peak non-repetitive forward surge current of 30A. The BYG10G series is known for its versatility and high efficiency in industry-standard package styles.

BYG10G Quick Information

Product Type: Switching Diode
Series: BYG10G
Canonical Name: Vishay BYG10G-E3/TR Switching Diode
Subcategory: Rectifier

BYG10G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BYG10G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

BYG10G Features

  • 400V peak reverse repetitive voltage.
  • 1.5A maximum continuous forward current.
  • 1.15V maximum forward voltage.
  • DO-214AC surface mount package.
  • Wide operating temperature range.

BYG10G Applications

  • Suitable for AC to DC rectification.
  • Can be used in power supply circuits.
  • Ideal for freewheeling diode applications.
  • Useful for reverse polarity protection.

BYG10G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak reverse repetitive voltage (Vrrm) of the BYG10G?

The BYG10G has a peak reverse repetitive voltage rating of 400V.

What is the maximum continuous forward current (If) of the BYG10G?

The maximum continuous forward current is 1.5A.

What is the maximum forward voltage (Vf) of the BYG10G?

The maximum forward voltage is 1.15V.

What is the peak reverse recovery time (trr) of the BYG10G?

The peak reverse recovery time is 4µs.

What package does the BYG10G use?

The BYG10G is housed in a DO-214AC surface mount package with two pins.

What surge current can the BYG10G handle?

The peak non-repetitive forward surge current is 30A.

What is the operating temperature range of the BYG10G?

The operating temperature range is -55°C to 150°C.
