Mfr Part #:

BXCS-12D-N2P-01-A

Mfr Name: Bridgelux

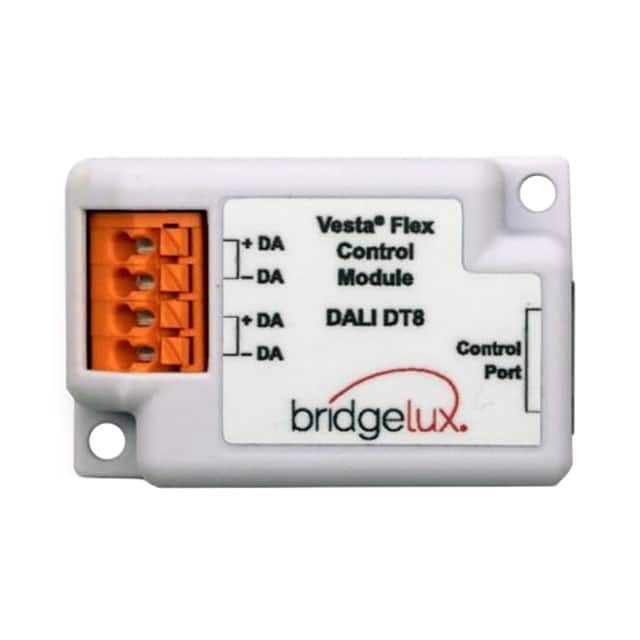

The Bridgelux BXCS-12D-N2P-01-A is a DALI-2 DT8 control module designed for Vesta Flex LED Drivers. It offers dual-channel control and operates at 12V.

Stock on Request

BXCS-12D-N2P-01-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Bridgelux
Accessory Type	DALI Control
For Use With	Vesta® Flex LED Drivers
Input Voltage	12V

View Similar Products (0)

BXCS-12D-N2P-01-A Description

Short technical summary and product information.

The Bridgelux Vesta® Flex BXCS-12D-N2P-01-A is a DALI-2 DT8 certified control module. It is designed to work seamlessly with Bridgelux Vesta Flex Dual Channel Drivers, enabling precise control of tunable white arrays and modules.

This module supports two-channel control for color temperature and intensity, dimming down to 0.1% and dim-to-off capabilities. It features a 12V input voltage and utilizes PWM output protocol. The integrated sensors are listed as none.

Intended for factory installation as incorporated products, these control modules connect via an Ethernet cable to form a smart lighting control system. The Vesta Flex platform is designed for application flexibility and interoperability with third-party systems, offering a future-ready solution that can adapt to new control systems without luminaire recertification.

BXCS-12D-N2P-01-A Quick Information

Product Type: DALI Control Module

Series: Vesta Flex

Canonical Name: Bridgelux Vesta® Flex DALI-2 DT8 Control Module

Subcategory: DALI Control

BXCS-12D-N2P-01-A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BXCS-12D-N2P-01-A Features

DALI-2 DT8 certified control module.
Dual-channel control for CCT and intensity.
12V input voltage operation.
PWM output protocol.
Designed for Vesta Flex LED Drivers.

BXCS-12D-N2P-01-A Applications

Smart lighting control systems.
Tunable white lighting applications.
Integration with Vesta Flex platform.
Building management systems.

BXCS-12D-N2P-01-A FAQs

4 frequently asked questions generated from this part’s specifications.

What control protocol does the Bridgelux BXCS-12D-N2P-01-A module support?

The module supports the DALI-2 DT8 control protocol.

How many channels does the Bridgelux BXCS-12D-N2P-01-A control module offer?

It offers two-channel control for color temperature and intensity.

What is the input voltage for the BXCS-12D-N2P-01-A module?

The input voltage is 12V.

What is the output protocol of the Bridgelux BXCS-12D-N2P-01-A?

The output protocol is PWM.
