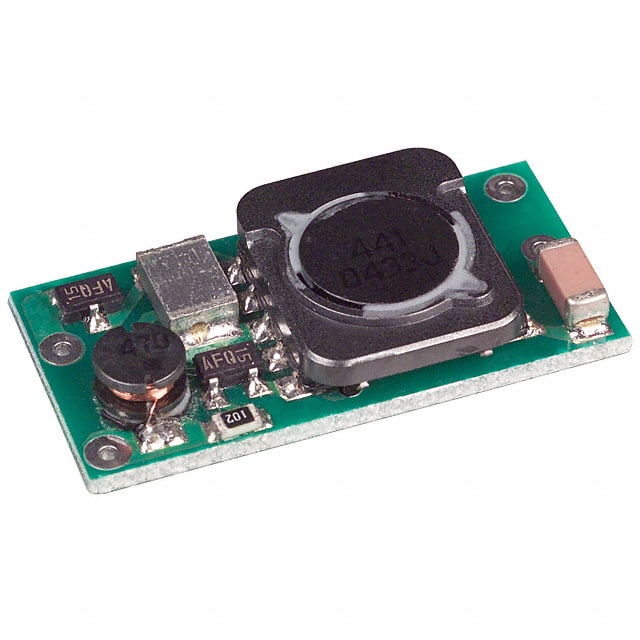

The JKL Components Corp. BXA-502 is a CCFL power supply designed for single CCFL lamps. It operates from a 5VDC input and delivers an output voltage of 650Vrms at a frequency of 70-90 kHz. The input current ranges from 200-300mA, with a typical output current of 4.5mA.
This inverter is designed for chassis mounting and has a compact size with dimensions of 26mm x 13mm x 5mm. The operating temperature range is from 0°C to 50°C.
Key electrical specifications include an input voltage range of 4.5V to 5.5V and an output voltage of 600V to 700Vrms. The output current is specified between 4.0mA and 5.0mA. The operating frequency is between 70kHz and 90kHz.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the BXA-502 is 4.5 VDC to 5.5 VDC.
The BXA-502 provides an output voltage between 600 Vrms and 700 Vrms, with a typical value of 650 Vrms.
The operating temperature range for the BXA-502 is 0°C to 50°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
