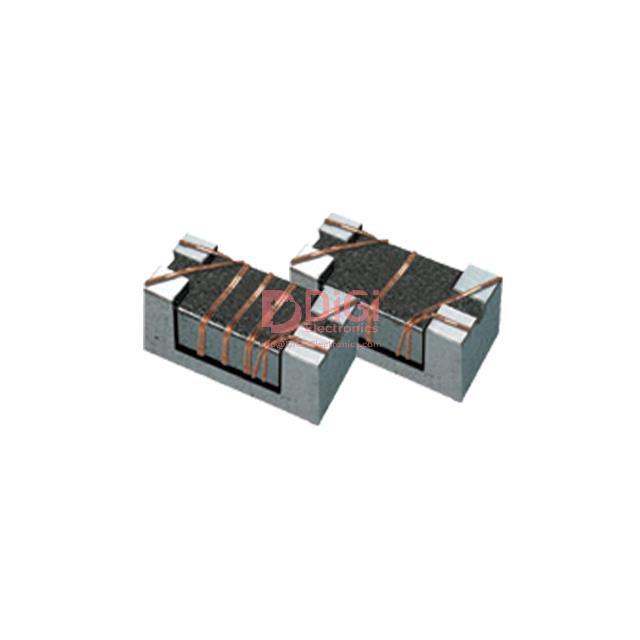

BWCU00321619601M02 The Pulse Electronics BWCU00321619601M02 is a common mode choke designed for signal line filtering. It features a 600 Ohm impedance at 100 MHz and a maximum current rating of 260mA.
Mfr Part #:

BWCU00321619601M02

Available from 1 distributors
Mfr Name: Pulse Electronics
Pulse Electronics
The Pulse Electronics BWCU00321619601M02 is a common mode choke designed for signal line filtering. It features a 600 Ohm impedance at 100 MHz and a maximum current rating of 260mA.
✓ Total Stock: 55 pcs
$ Price Range: $0.05

BWCU00321619601M02 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BWCU00321619601M02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
DC Resistance
Impedance
Mounting Type
Operating Temperature
SVHC Present
View Similar Products (0)

BWCU00321619601M02 Description

Short technical summary and product information.

The Pulse Electronics BWCU00321619601M02 is a common mode choke suitable for various electronic applications requiring noise suppression. This component operates with an impedance of 600 Ohms at a frequency of 100 MHz, making it effective for filtering unwanted signals.



Key electrical characteristics include a maximum current rating of 260mA and a DC voltage rating of 50V. The device has a low DC resistance (DCR) of 800mOhm, minimizing power loss. It is designed for surface mount applications and operates within a temperature range of -40°C to 105°C.



The common mode choke is packaged in a compact 0201 (0603 Metric) size, compatible with Cut Tape (CT) and Digi-Reel® formats for automated assembly processes. Its robust construction and specified operating parameters make it a reliable choice for signal integrity applications.

BWCU00321619601M02 Quick Information

Product Type: Common Mode Choke
Series: BWCU_02
Canonical Name: Pulse Electronics BWCU00321619601M02 Common Mode Choke
Subcategory: Fixed Inductors

BWCU00321619601M02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BWCU00321619601M02 Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

BWCU00321619601M02 Features

  • Common mode choke for signal line filtering.
  • 600 Ohms impedance at 100 MHz.
  • Rated for 260mA maximum current.
  • 50V DC voltage rating.
  • Surface mountable 0201 package.

BWCU00321619601M02 Applications

  • Ideal for EMI/RFI suppression.
  • Used in data line filtering.
  • Suitable for power supply filtering.
  • Effective in signal integrity circuits.

BWCU00321619601M02 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the BWCU00321619601M02 at 100 MHz?

The impedance is 600 Ohms at 100 MHz.

What is the maximum current rating for this common mode choke?

The maximum current rating is 260mA.

What is the DC resistance (DCR) of the BWCU00321619601M02?

The maximum DC resistance is 800mOhm.

What is the DC voltage rating for this component?

The DC voltage rating is 50V.

What is the operating temperature range for the BWCU00321619601M02?

The operating temperature range is -40°C to 105°C.

What type of package is the BWCU00321619601M02 in?

It is in a 0201 (0603 Metric) package and is surface mountable.
