Mfr Part #:

BUZ72A

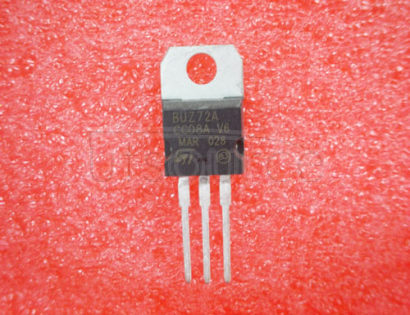

N-channel enhancement mode power MOSFET. 100V drain-source breakdown voltage, 9A continuous drain current, 0.25Ω max on-resistance.

✓ Total Stock: 2,336 pcs

BUZ72A Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	2,336 pcs On Request	2336 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BUZ72A Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Infineon Technologies
Lead Style	Gull Wing
Mounting Type	Through Hole
Reverse Recovery Time (trr)	170 ns
Termination Style	Through Hole

View Similar Products (0)

BUZ72A Description

Short technical summary and product information.

The BUZ72A is an N-channel enhancement mode power MOSFET from Infineon Technologies. It is rated for a minimum drain-source breakdown voltage of 100V and a continuous drain current of 9A at 25°C case temperature. Pulsed drain current capability is 36A, and the device is avalanche-rated for single-pulse energy of 59mJ.

The on-resistance is specified at 0.2Ω typical and 0.25Ω maximum with VGS=10V and ID=6A. Gate threshold voltage ranges from 2.1V to 4V, enabling compatibility with standard logic-level drive circuits. Switching times are moderate, with typical rise and fall times of 45ns and 40ns under defined conditions.

The BUZ72A is housed in a TO-220 AB through-hole package, providing efficient thermal transfer for power dissipation up to 40W at 25°C case temperature. Operating junction temperature range is -55°C to +150°C, with junction-to-case thermal resistance of 3.1 K/W. These characteristics support its use in power conversion and switching applications.

BUZ72A Quick Information

Product Type: Power MOSFET

Canonical Name: N-Channel Power MOSFET, 100V, 9A, TO-220 AB

Subcategory: N-Channel Power MOSFET

BUZ72A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BUZ72A Features

100V drain-source breakdown voltage.
9A continuous drain current rating.
0.25Ω maximum on-resistance.
Avalanche-rated for robust switching.
TO-220 AB through-hole package.

BUZ72A Applications

Suitable for switch-mode power supplies.
Used in DC-DC converter circuits.
Ideal for motor and load switching.

BUZ72A FAQs

7 frequently asked questions generated from this part’s specifications.

What is the drain-source breakdown voltage of the BUZ72A?

Minimum 100V at VGS=0V, ID=0.25mA, Tj=25°C.

What package is the BUZ72A available in?

TO-220 AB, through-hole mounting.

What is the operating junction temperature range?

-55°C to +150°C.

Is the BUZ72A RoHS compliant?

Listed as RoHS3 compliant, though the data is unverified.

What is the maximum continuous drain current of the BUZ72A?

9A at TC=25°C.

What is the drain-source on-resistance?

0.2Ω typical, 0.25Ω maximum at VGS=10V, ID=6A.

What is the single-pulse avalanche energy rating?

59mJ with ID=10A, VDD=25V, RGS=25Ω, L=885µH, Tj=25°C.
