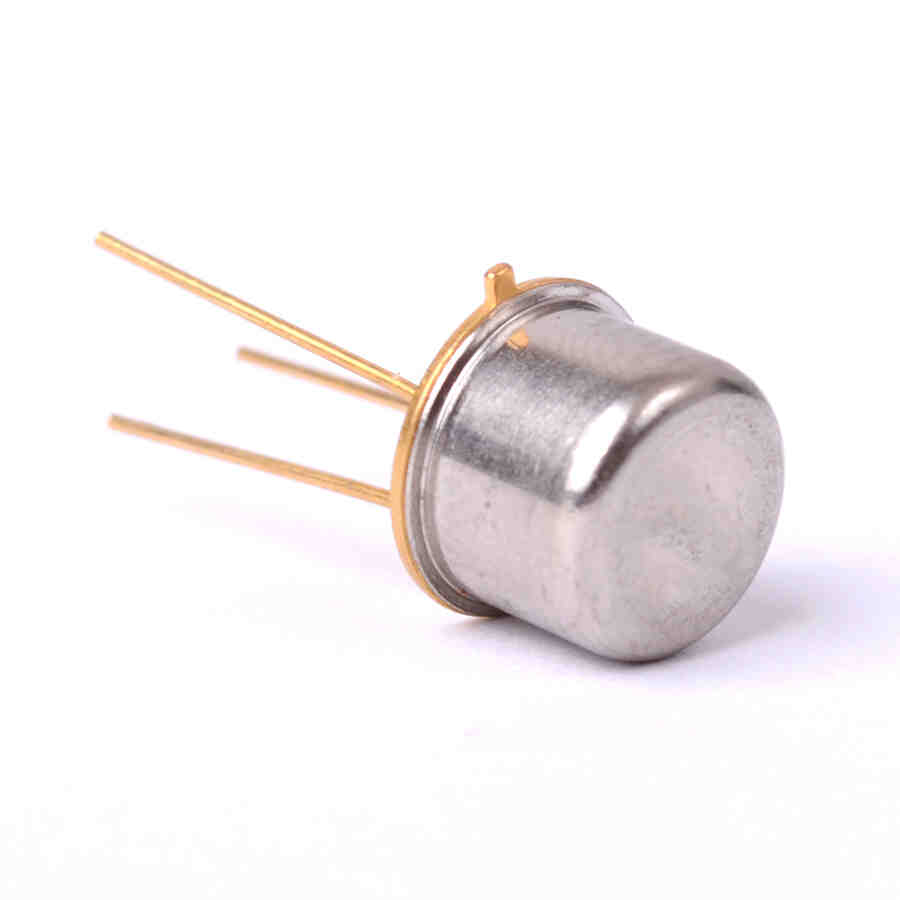

BUX52 The BUX52 is a Silicon NPN Transistor manufactured by SGS Thomson, housed in a TO-39 package. It features a maximum collector current of 3.5A and a maximum collector-emitter voltage of 250V.
Mfr Part #:

BUX52

Available from 1 distributors
Mfr Name: S+M
S+M
The BUX52 is a Silicon NPN Transistor manufactured by SGS Thomson, housed in a TO-39 package. It features a maximum collector current of 3.5A and a maximum collector-emitter voltage of 250V.
✓ Total Stock: 17 pcs
$ Price Range: $1.26

BUX52 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BUX52 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Junction Temperature
Lead Spacing
Mounting Type
Operating Temperature
Weight
View Similar Products (0)

BUX52 Description

Short technical summary and product information.

The BUX52 is a Silicon NPN Transistor from SGS Thomson, designed for various electronic applications. It is packaged in a TO-39 case, suitable for through-hole mounting.



Key electrical characteristics include a maximum collector-emitter voltage (Vce) of 250V and a maximum collector current (Ic) of 3.5A. The device offers a minimum current gain (hFE) of 20 and a maximum of 60. Its transition frequency (ft) is a minimum of 8MHz, indicating its suitability for moderate frequency applications.



Thermal specifications include a maximum operating temperature of 175°C and a maximum junction temperature of 200°C. The power dissipation is rated at a maximum of 10W, with a derating of 57mW/°C above 25°C.



This component is specified with a collector-base voltage (Vcb) of 350V and an emitter-base voltage (Veb) of 7V. The fall time is a maximum of 800ns, and the rise time is a maximum of 1.0µs.

BUX52 Quick Information

Product Type: Transistor
Canonical Name: BUX52 Transistor Silicon NPN
Subcategory: Silicon NPN

BUX52 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BUX52 Estimated Pricing

Qty Low High
1+ $1.26 $1.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

BUX52 Features

  • Silicon NPN Transistor
  • Maximum Collector Current 3.5A
  • Maximum Collector-Emitter Voltage 250V
  • TO-39 Package
  • Minimum Transition Frequency 8MHz

BUX52 Applications

  • Used in RF switching circuits
  • Suitable for RF rectification
  • Applicable in high-voltage RF applications
  • Ideal for signal modulation circuits

BUX52 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage for the BUX52?

The maximum collector-emitter voltage (Vce) for the BUX52 is 250V.

What is the maximum collector current of the BUX52 transistor?

The maximum collector current (Ic) for the BUX52 is 3.5A.

What is the minimum current gain (hFE) for the BUX52?

The minimum current gain (hFE) for the BUX52 is 20.

What is the transition frequency of the BUX52?

The minimum transition frequency (ft) for the BUX52 is 8MHz.

What is the operating temperature range for the BUX52?

The maximum operating temperature for the BUX52 is 175°C.

What package type is the BUX52 transistor in?

The BUX52 transistor is in a TO-39 package.
