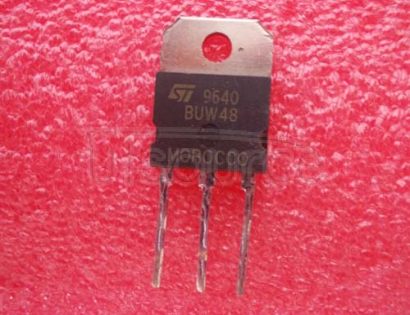

BUW48 The BUW48 is a high power NPN silicon transistor from STMicroelectronics. It features a 60V collector-emitter voltage, 30A collector current, and 150W power dissipation in a TO-218-3 package.
Mfr Part #:

BUW48

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The BUW48 is a high power NPN silicon transistor from STMicroelectronics. It features a 60V collector-emitter voltage, 30A collector current, and 150W power dissipation in a TO-218-3 package.
✓ Total Stock: 55 pcs
$ Price Range: $3.51

BUW48 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BUW48 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Mounting Type
Operating Temperature
Power
Storage Temperature
Supplier Device Package
Tape & Reel
Transistor Type
Turn On Time
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

BUW48 Description

Short technical summary and product information.

The BUW48 is a high power NPN silicon transistor manufactured by STMicroelectronics. It is designed for high frequency and efficiency converters, motor control, and industrial equipment. The device is housed in a TO-218-3 through-hole package.



Key electrical specifications include a collector-emitter voltage (VCEO) of 60V, a collector-emitter voltage (VCEV) of 120V with Vbe=-1.5V, and an emitter-base voltage of 7V. The collector current is rated at 30A with a peak current of 45A. The total power dissipation is 150W at Tc=25°C, and the operating junction temperature can reach up to 175°C.



The BUW48 offers fast switching speeds with a transition frequency of 8 MHz and low saturation voltages, such as 0.6V at Ic=20A, Ib=2A. It is suitable for switching regulators and motor control applications.

BUW48 Quick Information

Product Type: Bipolar Junction Transistor (BJT)
Canonical Name: BUW48 High Power NPN Silicon Transistor
Subcategory: Single BJT

BUW48 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

BUW48 Estimated Pricing

Qty Low High
300+ $3.51 $3.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

BUW48 Features

  • High power NPN silicon transistor.
  • 60V collector-emitter voltage rating.
  • 30A collector current capability.
  • 150W power dissipation at 25°C.
  • Fast switching with 8 MHz transition frequency.

BUW48 Applications

  • Ideal for switching regulator circuits.
  • Used in motor control applications.
  • Suitable for high frequency converters.
  • Designed for industrial equipment.

BUW48 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage of the BUW48?

The maximum collector-emitter voltage (VCEO) is 60V with Ib=0, and the maximum collector-emitter voltage (VCEV) is 120V with Vbe=-1.5V.

What is the maximum collector current of the BUW48?

The maximum collector current is 30A, with a peak current of 45A for tp<5ms.

What is the power dissipation rating of the BUW48?

The total power dissipation is 150W at Tc=25°C.

What is the operating junction temperature range for the BUW48?

The maximum operating junction temperature is 175°C, and the storage temperature range is -65 to 175°C.

What package is the BUW48 available in?

The BUW48 is available in a TO-218-3 through-hole package.

Is the BUW48 RoHS compliant?

The BUW48 is marked as RoHS3 compliant, but this status is unverified.
