| Category | |
| Manufacturer Name | |
| Current | |
| Current - Quiescent (Max) | |
| Input Logic Level | |
| Logic Type | |
| Max Propagation Delay @ V, Max CL | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The BU4SU69-TR is a single-channel inverter logic gate manufactured by Rohm Semiconductor. This component is designed for digital logic applications requiring signal inversion.
Key electrical specifications include an operating voltage range of 3V to 16V, with logic level thresholds between 1V to 3V for low and 4V to 12V for high. It features a maximum propagation delay of 25ns at 15V with a 50pF load capacitance. The quiescent current is a maximum of 1 µA, and it can source or sink up to 3.4mA.

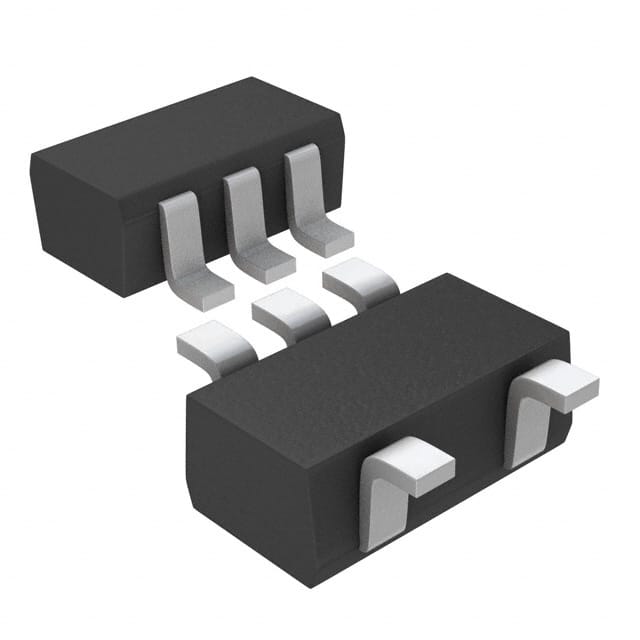

This device is available in a compact SMP5 package, suitable for surface mounting. The operating temperature range is -40°C to 85°C, making it versatile for various environmental conditions. The SC-74A, SOT-753 package ensures a small footprint on printed circuit boards.
The BU4SU69-TR is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating it is suitable for standard handling procedures.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3V to 16V.
The operating temperature range is -40°C to 85°C.
It is available in a surface-mount SMP5 package (SC-74A, SOT-753).
The maximum quiescent current is 1 µA.
The maximum propagation delay is 25 ns at 15V with a 50 pF load.
