The BU4094BCFV is an 8bit static shift/store register manufactured by ROHM Semiconductor. This integrated circuit is composed of an 8-bit shift register and an 8-bit latch, allowing data to be transferred into the latch via an asynchronous strobe input, enabling the data transfer mode to hold output.
Key electrical specifications include a wide operating supply voltage range from 3V to 16V and an input voltage range from VSS to VDD. The device operates within a temperature range of -40°C to +85°C. It offers low power consumption, high input impedance, and high fan-out capabilities.

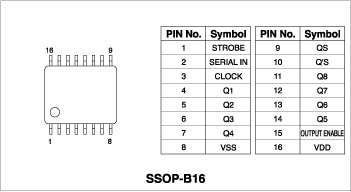

Available in DIP16, SOP16, and SSOP-B16 packages, the BU4094BCFV is suitable for various digital logic applications requiring efficient data shifting and storage. The DIP16 package measures 19.40mm x 6.50mm x 7.95mm, the SOP16 measures 10.00mm x 6.20mm x 1.71mm, and the SSOP-B16 measures 5.00mm x 6.40mm x 1.35mm.
This product is a silicon monolithic integrated circuit. It has no designed protection against radioactive rays. The absolute maximum supply voltage is +18.0V, and the input voltage should not exceed VDD+0.3V or go below VSS-0.3V. The maximum input current is ±10 mA.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.91 | $12.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range for the BU4094BCFV is 3V to 16V.
The BU4094BCFV operates within a temperature range of -40°C to +85°C.
The BU4094BCFV is available in DIP16, SOP16, and SSOP-B16 packages.
The BU4094BCFV is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the BU4094BCFV is 1 Unlimited.
The BU4094BCFV is REACH Unaffected.
