| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Color | |
| Contact Material | |
| Drop Test | |
| Height Above Board | |
| Holder Material | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Package / Case | |
| Shock Test | |
| Style | |
| Termination Style | |
| Vibration Test | |
| Weight |

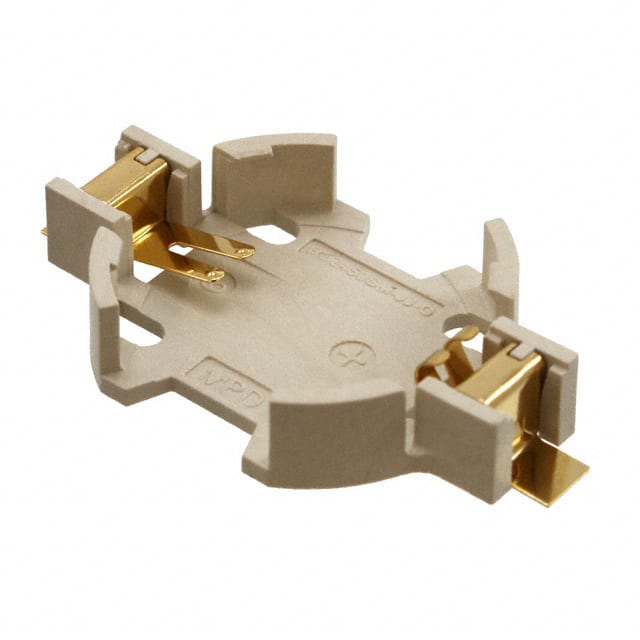

The BU2450SM-JJ-GTR from MPD (Memory Protection Devices) is a surface-mount coin cell holder designed for a single 24.5mm (2450 series) battery. The holder features an open construction with gold-flashed phosphor bronze contacts for reliable electrical connection.
The holder body is molded from Zenite 6130, a 30% glass reinforced Liquid Crystal Polymer resin (UL File No. E344082) in an off-white color. It is rated for an operating temperature range of -40°C to +280°C and has a height above board of 7.01mm. The part weighs approximately 2.37g.
This holder is suitable for PCB surface mount applications with SMD (SMT) tab termination. It has passed vibration, shock, and drop tests per the datasheet specifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.63 | $1.63 |
| 10+ | $1.35 | $1.35 |
| 50+ | $1.19 | $1.19 |
| 100+ | $1.12 | $1.12 |
| 250+ | $1.04 | $1.04 |
| 500+ | $0.98 | $0.98 |
| 750+ | $0.95 | $0.95 |
| 1,250+ | $0.91 | $0.91 |
| 1,750+ | $0.89 | $0.89 |
| 2,500+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts a 24.5mm coin cell, specifically the 2450 series.
The operating temperature range is -40°C to +280°C.
The datasheet states it is RoHS compliant.
It is designed for PCB surface mount with SMD (SMT) tab termination.
The contacts are 0.020" thick phosphor bronze with gold flash.
