| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Contact Material | |
| Mounting Type | |
| Panel Thickness | |
| SVHC Present |

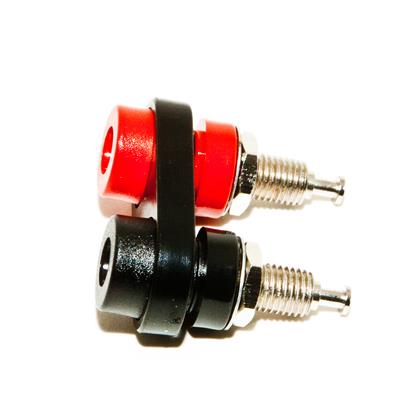

The Mueller Electric BU-P2269 is a panel mountable double banana jack, suitable for various instrumentation and test applications. It features nickel-plated brass contacts and a nylon body for durability.
This dual banana jack supports a current rating of 15 Amps and offers versatile voltage ratings, including 30 VAC/60 VDC for hand-held use and up to 2500 Vrms maximum in controlled environments for hands-free applications. The operating temperature range is from -50°C to 120°C.
Designed for panel mounting, the BU-P2269 can be installed on panels up to 0.25 inches thick. The recommended panel cutout consists of two 0.375-inch diameter holes spaced 0.75 inches apart center-to-center. Wire connections can be made via soldering to the pin ends. The pole threads are 1/4"-32.
With an overall length of 1.22 inches and a width of 1.38 inches, this jack is compact yet robust. It is RoHS 3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15A.
Hand-held: 30VAC/60VDC; hands-free in controlled environments: 2500Vrms.
Panel mount.
-50°C to 120°C.
Nylon.
Nickel-plated brass.
Solder.
