| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Voltage | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The BTT61002ERAXUMA1 from Infineon Technologies is a dual-channel smart high-side power switch, part of the PROFET™ +24V family. This device is designed for harsh automotive environments and is suitable for driving loads such as lamps and LEDs.
Key electrical specifications include an operating voltage range of 5V to 36V, a maximum supply voltage of 65V, and a nominal load current of 2.2A when all channels are active. The ON-state resistance is typically 100mΩ at 25°C and increases to a maximum of 200mΩ at 150°C.
This switch offers various protection and diagnostic functions, including over-temperature protection, over-voltage protection, current limiting, and open load detection. It is compatible with 3.3V and 5V logic inputs and features optimized electromagnetic compatibility.

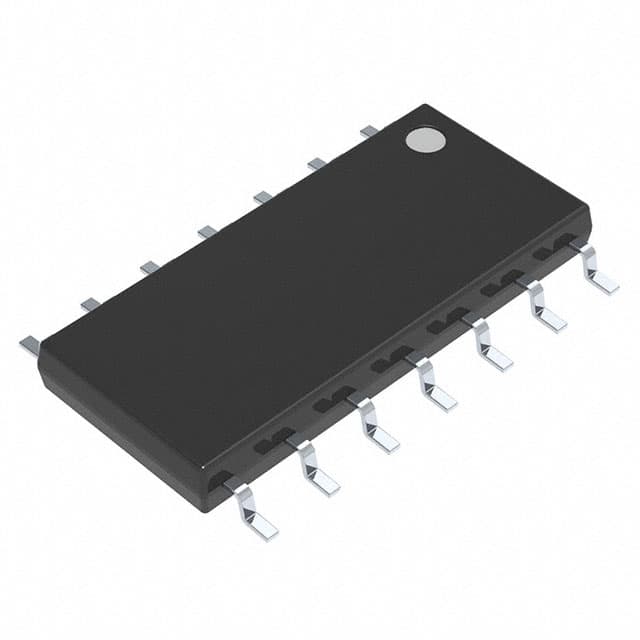

The BTT61002ERAXUMA1 is supplied in a PG-TDSO-14-21 package, suitable for surface mounting. Its operating temperature range is -40°C to 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.08 | $3.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5V to 36V.
The maximum supply voltage is 65V.
The nominal load current is 2.6A with one channel active and 2.2A with all channels active.
It uses a PG-TDSO-14-21 package, which is a 14-SOIC with exposed pad.
The operating temperature range is -40°C to 150°C (junction temperature).
Protection features include current limiting, open load detection, over-temperature shutdown, and over-voltage protection.
