The Infineon BTT6100-2ERA is a dual channel smart high-side power switch, part of the PROFET™ +24V family. It is designed for harsh automotive environments and is suitable for driving loads such as lamps and LEDs.
This device operates within a voltage range of 5V to 36V and offers a typical ON-resistance of 100mΩ per channel. It supports a nominal load current of 2.6A for a single channel active and 2.2A for all channels active. The BTT6100-2ERA includes diagnostic functions like proportional load current sense, open load detection, and short circuit indication.

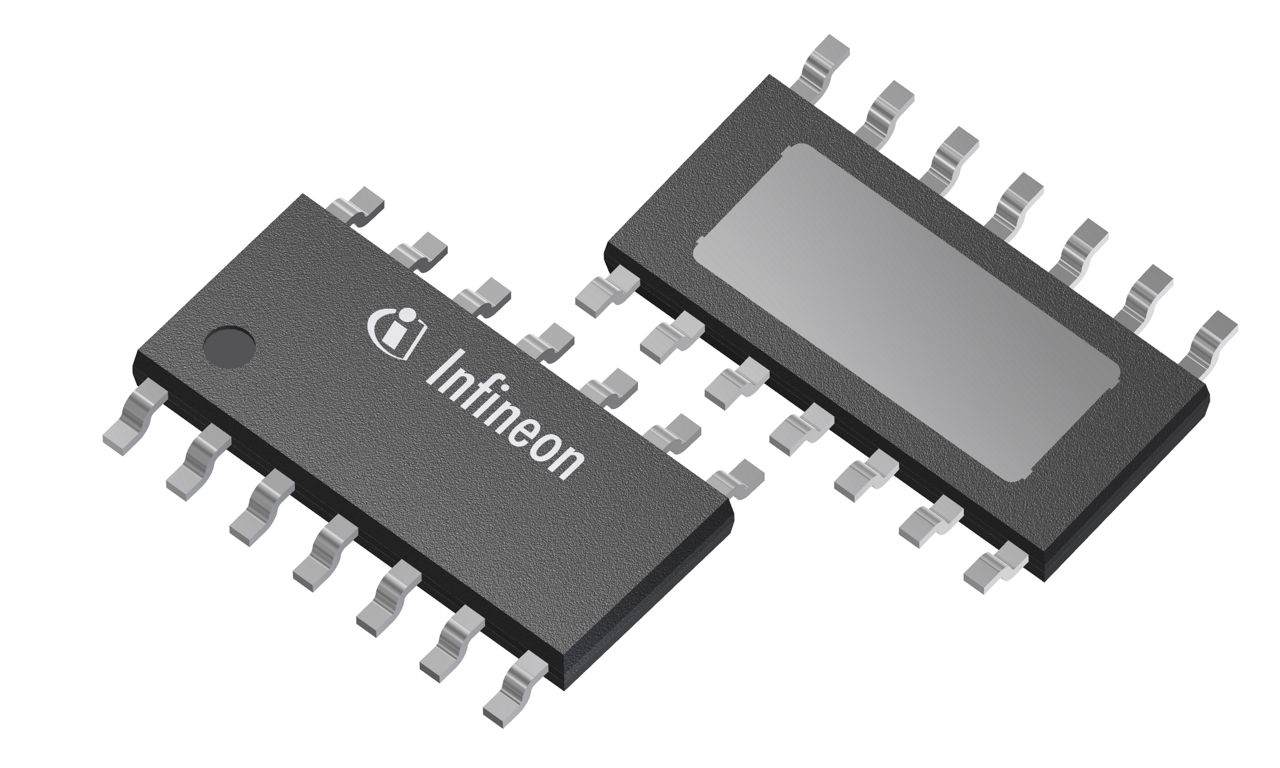

Protection features include over-temperature protection with latch, stable behavior during undervoltage, and enhanced short circuit operation. The device is housed in a PG-TDSO-14 exposed pad package, suitable for surface mounting.
It is designed to replace electromechanical relays, fuses, and discrete circuits, offering a robust solution for 12V and 24V trucks and transportation systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5 V to 36 V.
It is offered in a PG-TDSO-14 package.
The typical on-resistance is 100 mΩ per channel.
The nominal load current is 2.6 A per channel when one channel is active, and 2.2 A when all channels are active.
The logic inputs are compatible with 3.3 V and 5 V.
The standby current is 500 nA maximum at 25°C with load.
The typical current sense ratio is 600.
