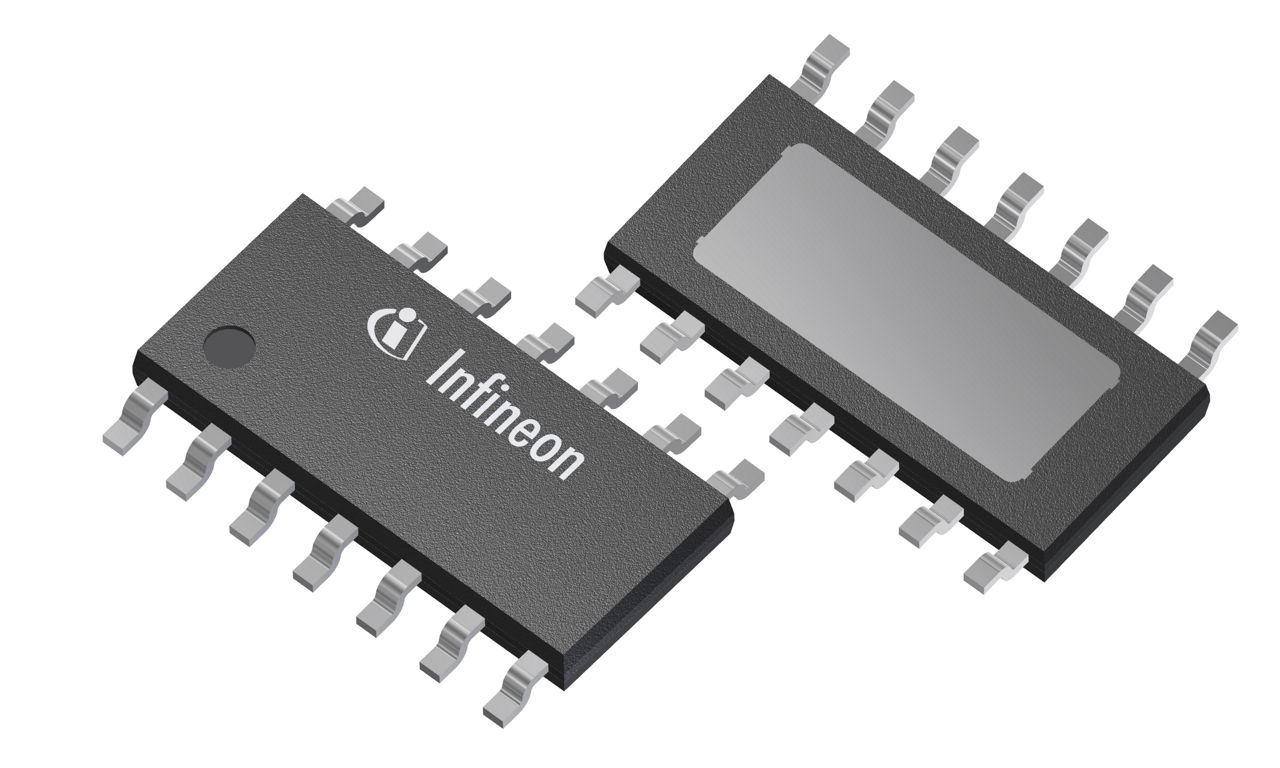

The Infineon BTT60502ERAXUMA1 is a dual-channel smart high-side power switch with a low on-resistance of 50 mΩ. It is designed for demanding automotive environments and can drive loads such as lamps and LEDs.
This device operates within a voltage range of 5V to 36V, with a maximum supply voltage of 65V. It supports logic inputs compatible with 3.3V and 5V systems. Key electrical characteristics include a nominal load current of 4.5A for a single channel and 3A for both channels active, a typical current sense ratio of 1460, and a minimum current limitation of 38A.
The BTT60502ERAXUMA1 is housed in a PG-TDSO-14 package suitable for surface mounting. It provides various protection and diagnostic functions, including open load detection, short circuit protection, and overtemperature protection. Its design prioritizes optimized electromagnetic compatibility and low standby current.
This component is suitable for applications in 12V and 24V trucks and transportation systems, replacing electromechanical relays and fuses. It is particularly well-suited for loads with high inrush current, such as lamps.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.80 | $3.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5 V to 36 V.
The maximum ON-state resistance at TJ = 150°C per channel is 100 mΩ.
The nominal load current for one channel active is 4.5 A.
The typical current sense ratio is 1460.
The package type is PG-TDSO-14.
