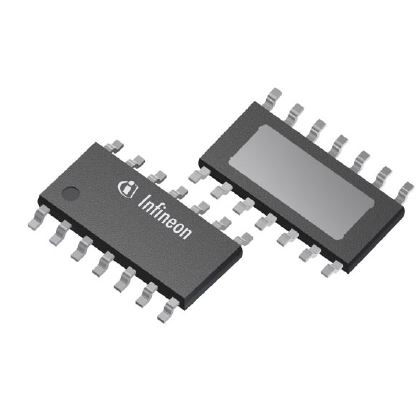

The Infineon BTT6010-1ERA is a 10 mΩ single-channel smart high-side power switch, suitable for 12 V and 24 V truck and transportation systems. It is designed to drive loads such as lamps and LEDs in harsh automotive environments.
Key electrical specifications include an operating voltage range of 5 V to 36 V, a maximum supply voltage of 66 V, and a nominal load current of 9 A. The device features a low ON-state resistance of 22 mΩ at 150°C and a typical current sense ratio of 3900. It also offers a very low standby current of 1.4 µA at 25°C.
This smart power switch provides comprehensive diagnostic functions, including proportional load current sense, open load detection in ON and OFF states, and short circuit detection to battery and ground. Protection functions include overtemperature protection with latch, stable behavior during undervoltage, and voltage-dependent current limitation.
The BTT6010-1ERA is supplied in a PG-TDSO-14 package with surface mount technology. It is compatible with 3.3 V and 5 V logic inputs and offers optimized electromagnetic compatibility and electrostatic discharge protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5 V to 36 V.
The maximum supply voltage is 66 V.
The nominal load current is 9 A.
The typical on-state resistance is 10 mΩ, with a maximum of 22 mΩ at 150°C.
The BTT6010-1ERA is housed in a PG-TDSO-14 surface-mount package.
The maximum standby current is 1.4 µA at 25°C.
The logic inputs are compatible with 3.3 V and 5 V levels.
