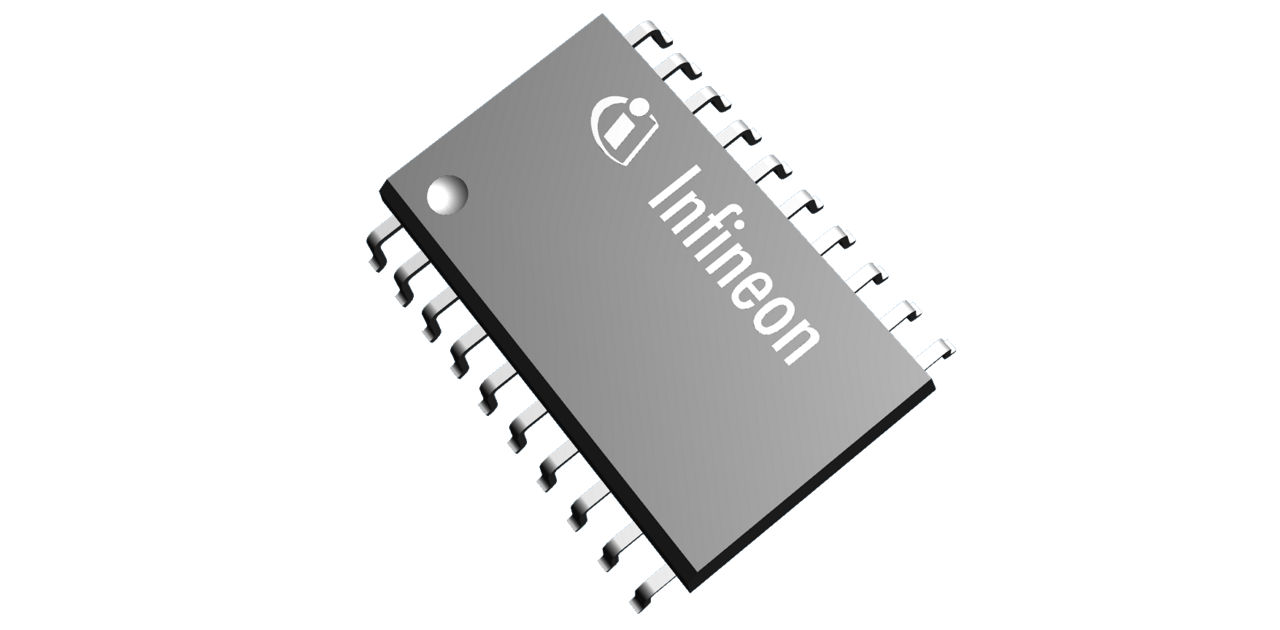

The Infineon BTS730 is a smart high-side power switch featuring a single channel and integrated protection functions. It is built using N-channel planar power MOSFET technology within a PG-DSO-20 package.
This device is suitable for automotive applications, operating within a temperature range of -30°C to 150°C. Key benefits include self-generated and externally adjustable PWM capabilities, along with a slow slew rate. It provides essential protection features such as short circuit protection, overload protection, current limitation, load dump protection, and overtemperature protection.
Applications include dimmer switches for dashboard and dome lighting, allowing continuous power control for capacitive loads like lamps and resistive loads such as LEDs. The BTS730 ensures stable behavior at undervoltage and offers improved electromagnetic compatibility (EMC).
Its logic ground is independent from the load ground, and it operates over a wide voltage range. The device also includes protection against loss of ground, reverse battery, and electrostatic discharge (ESD).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -30°C to 150°C.
The typical on-resistance is 70mΩ.
The BTS730 includes short circuit protection, overload protection, current limitation, load dump protection, overtemperature protection, undervoltage and overvoltage protection, loss of ground protection, reverse battery protection, and ESD protection.
The BTS730 is in a PG-DSO-20 package.
