CGA3E2X8R1H472K080AA
TDK Corporation
The TDK Corporation CGA3E2X8R1H472K080AA is a ceramic capacitor. It features RoHS3 compliance and Moisture Sensitivity Level 1.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
309 pcs
|
309 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| SVHC Present |

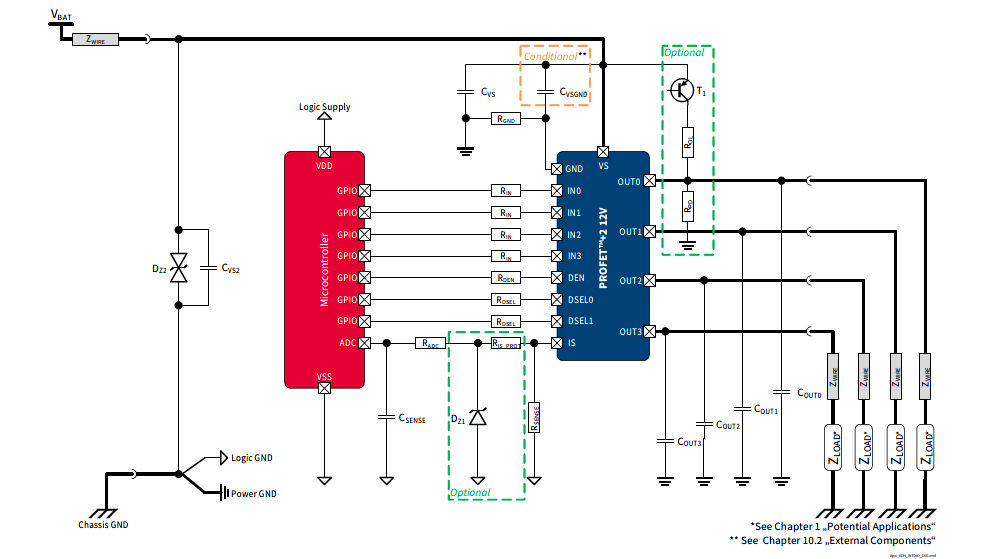

The Infineon BTS7200-4EPA is a Smart High-Side Power Switch from the PROFET™ +2 12V family, designed for automotive applications. It integrates protection functions and diagnosis capabilities, utilizing SMART7 technology.
Key electrical specifications include a minimum operating voltage of 4.1V (at switch ON) and a maximum operating voltage of 28V. The maximum ON-state resistance is 120 mΩ at 150°C. It supports a nominal load current of 1A at 85°C and features a current sense ratio of 670.
Protection features include absolute and dynamic temperature limitation with controlled restart, overcurrent protection with intelligent restart control, undervoltage shutdown, and overvoltage protection with external components. Diagnostic features include proportional load current sense, open load detection in ON and OFF states, and short circuit detection to ground and battery.
The device is qualified for automotive applications according to AEC-Q100 Grade 1. It is supplied in a PG-TSDSO-14 package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum operating voltage at switch ON is 4.1 V.
The maximum operating voltage is 28 V.
The maximum ON-state resistance is 120 mΩ at 150°C.
The nominal load current is 1 A at 85°C.
The BTS7200-4EPA is supplied in a PG-TSDSO-14 package.
Yes, the BTS7200-4EPA is qualified for automotive applications according to AEC-Q100 Grade 1.
