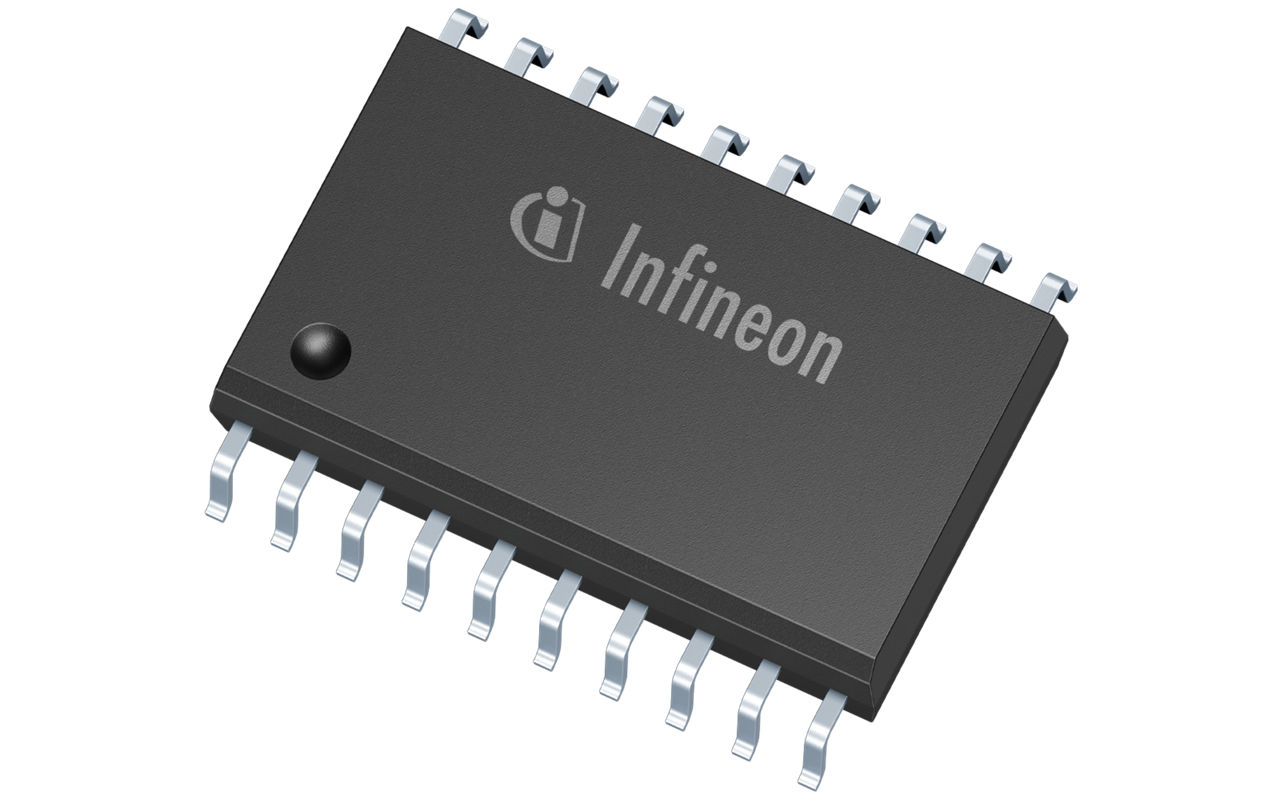

The Infineon Technologies BTS711L1 is a Smart Four Channel Highside Power Switch designed for 12V and 24V DC grounded loads. It features N-channel vertical power FETs with integrated protective functions, including overload protection, current limitation, short-circuit protection, and thermal shutdown.
This device operates within a voltage range of 5.0 to 34V. The on-state resistance varies depending on the number of active channels, with 200mΩ for one channel, 100mΩ for two parallel channels, and 50mΩ for four parallel channels. Current limitation is typically 4A across all configurations.
The BTS711L1 is suitable for various resistive, inductive, and capacitive loads, replacing electromechanical relays and discrete circuits. It provides diagnostic feedback and is compatible with microcontroller inputs. The component is housed in a PG-DSO20 package and is designed for surface mount applications.
Key features include overvoltage protection up to 43V, fast demagnetization of inductive loads, and reverse battery protection. It also offers undervoltage and overvoltage shutdown with auto-restart and hysteresis, along with open drain diagnostic outputs and open load detection in the ON-state.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the BTS711L1 is 5.0 to 34V.
The typical on-state resistance with one active channel is 200 mΩ.
The typical current limitation for the BTS711L1 is 4A.
The BTS711L1 is available in a PG-DSO20 package.
The BTS711L1 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the BTS711L1 is 1 Unlimited.
