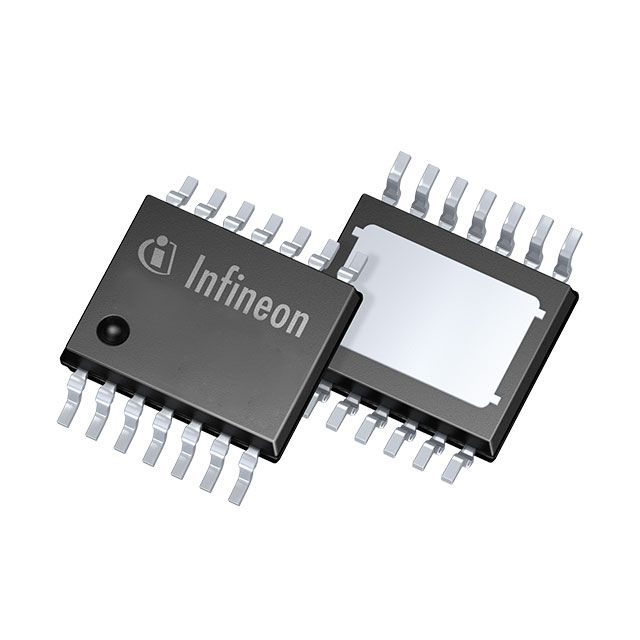

BTS70402EPAXUMA1 The Infineon Technologies BTS70402EPAXUMA1 is a smart high-side power switch designed for automotive applications. It features two N-channel outputs capable of handling 3.5A nominal load current.
Mfr Part #:

BTS70402EPAXUMA1

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies BTS70402EPAXUMA1 is a smart high-side power switch designed for automotive applications. It features two N-channel outputs capable of handling 3.5A nominal load current.
✓ Total Stock: 130,100 pcs
$ Price Range: $1.58

BTS70402EPAXUMA1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
130,000 pcs
On Request
130000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Smaxon Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BTS70402EPAXUMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

BTS70402EPAXUMA1 Description

Short technical summary and product information.

The BTS70402EPAXUMA1 from Infineon Technologies is a smart high-side power switch belonging to the PROFET™ +2 12V family. It integrates protection and diagnosis functions, making it suitable for driving resistive, inductive, and capacitive loads.



This device offers two N-channel outputs with a nominal load current capability of 3.5A at 85°C. Key electrical specifications include a minimum operating voltage of 4.1V and a maximum of 28V, with overvoltage protection clamping at 35V. The ON-state resistance is typically 19mΩ, and a typical current sense ratio of 1800 is provided.



Protection features include current limiting, open load detection, over-temperature, overvoltage, and undervoltage lockout (UVLO). It operates within a temperature range of -40°C to 150°C (TJ). The switch type is general purpose with an On/Off interface.



The BTS70402EPAXUMA1 is supplied in a PG-TSDSO-14-22 package, a 14-TSSOP with an exposed pad, designed for surface mounting. It is qualified for automotive applications according to AEC-Q100 Grade 1.

BTS70402EPAXUMA1 Quick Information

Product Type: Power Distribution Switch
Series: +2 12V
Canonical Name: BTS7040-2EPA Smart High-Side Power Switch

BTS70402EPAXUMA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BTS70402EPAXUMA1 Estimated Pricing

Qty Low High
1+ $1.58 $1.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

BTS70402EPAXUMA1 Features

  • Two N-channel high-side outputs.
  • 3.5A nominal load current capability.
  • Low 19mOhm typical ON-state resistance.
  • Integrated overcurrent and over-temperature protection.
  • Suitable for automotive applications.

BTS70402EPAXUMA1 Applications

  • Drives resistive and inductive loads.
  • Replaces electromechanical relays.
  • Suitable for high inrush current loads.
  • Used in automotive lighting circuits.
  • Ideal for LED module control.

BTS70402EPAXUMA1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the nominal load current for the BTS70402EPAXUMA1?

The nominal load current is 3.5A at 85°C.

What is the typical ON-state resistance of the BTS70402EPAXUMA1?

The typical ON-state resistance is 19 mΩ.

What is the operating temperature range for this power switch?

The operating temperature range is -40°C to 150°C (TJ).

What package type is the BTS70402EPAXUMA1 supplied in?

It is supplied in a 14-TSSOP (0.154", 3.90mm Width) Exposed Pad package, specifically PG-TSDSO-14-22.

What fault protection features are included?

It includes current limiting (fixed), open load detect, over temperature, over voltage, and UVLO.

What is the minimum operating voltage for the BTS70402EPAXUMA1?

The minimum operating voltage at switch ON is 4.1 V.
