| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The Infineon Technologies BTS70082EPZXUMA1 is a smart high-side power switch designed for automotive applications. It provides integrated protection features including overcurrent, overtemperature, overvoltage, and short circuit protection, along with diagnostic capabilities like proportional load current sense.
This device is suitable for driving resistive, inductive, and capacitive loads, and can handle 7.5A nominal load current at 85°C ambient temperature, with a maximum ON-state resistance of 16mΩ at 150°C. It operates within a wide temperature range of -40°C to 175°C (TJ).

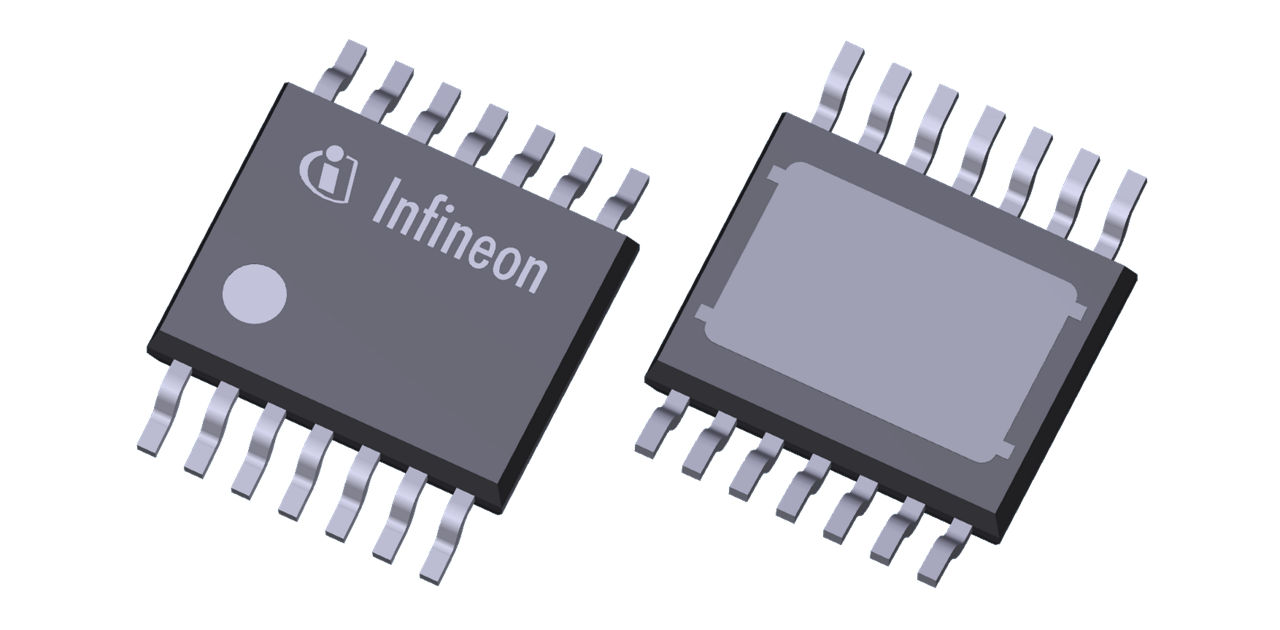

The BTS70082EPZXUMA1 is packaged in a 14-SOIC (PG-TDSO-14-11) with an exposed pad, designed for surface mounting. Its features include slew rate control and an On/Off interface, making it a versatile solution for replacing electromechanical relays and discrete circuits in demanding environments.
Potential applications include under-the-hood systems, powertrain applications such as transmission control, and driving high inrush current loads like automotive lamps or LED modules. The device is qualified for automotive applications according to AEC-Q100 Grade 0.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.44 | $2.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum operating voltage is 4.1V at switch ON (3.1V during cranking) and the maximum is 28V.
It is available in a 14-SOIC (0.154", 3.90mm Width) Exposed Pad package, also known as PG-TDSO-14-11.
The operating temperature range is -40°C to 175°C (junction temperature).
It includes over current, over temperature, over voltage, and short circuit protection.
The typical current sense ratio is 9500 at nominal load current.
It has two high-side N-channel outputs.
