| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 1632 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |

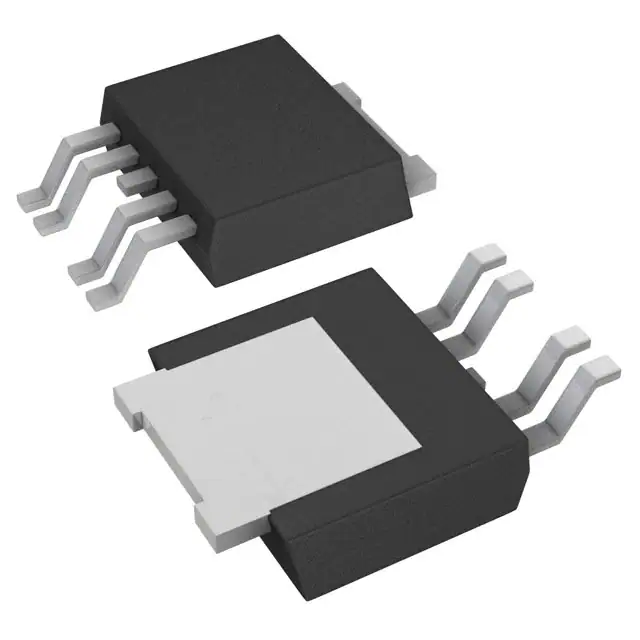

The Infineon BTS5014SDAAUMA1 is a single-channel smart high-side power switch belonging to the PROFET™ series. This device is designed for automotive and industrial applications requiring robust power control.
Key electrical characteristics include a maximum output current of 6A and a typical on-state resistance (Rds On) of 14mOhm. The switch operates within a load voltage range of 5.5V to 20V. It is designed for surface mounting and comes in a TO-252-5 package.
The operating temperature range for this component is -40°C to 150°C (TJ), ensuring reliable performance in demanding environments. Features such as auto-restart, fault protection, current limiting, open load detection, over-temperature, and over-voltage protection are integrated into the device for enhanced system safety and reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 6A.
The typical on-resistance is 14 mOhm.
The load voltage range is 5.5V to 20V.
The operating temperature range is -40°C to 150°C (TJ).
It is supplied in a TO-252-5, DPak (4 Leads + Tab), TO-252AD package.
The mounting type is surface mount.
