| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,463 pcs
|
1463 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,210 pcs
|
1210 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Operating Voltage | |
| Storage Temperature | |
| Tape & Reel |
The Infineon BTS50085-1TMB is a smart high-side power switch belonging to the PROFET family. It is designed for 48 V DC grounded loads and offers integrated protection features such as overload, short circuit, over temperature, and over voltage protection.
Key electrical specifications include an operating voltage range of 5.0 to 58 V, an on-state resistance of 9 mΩ, and a load current capability (ISO) of 44 A. The device also provides diagnostic feedback with load current sense and features a short circuit current limitation of 90 A.

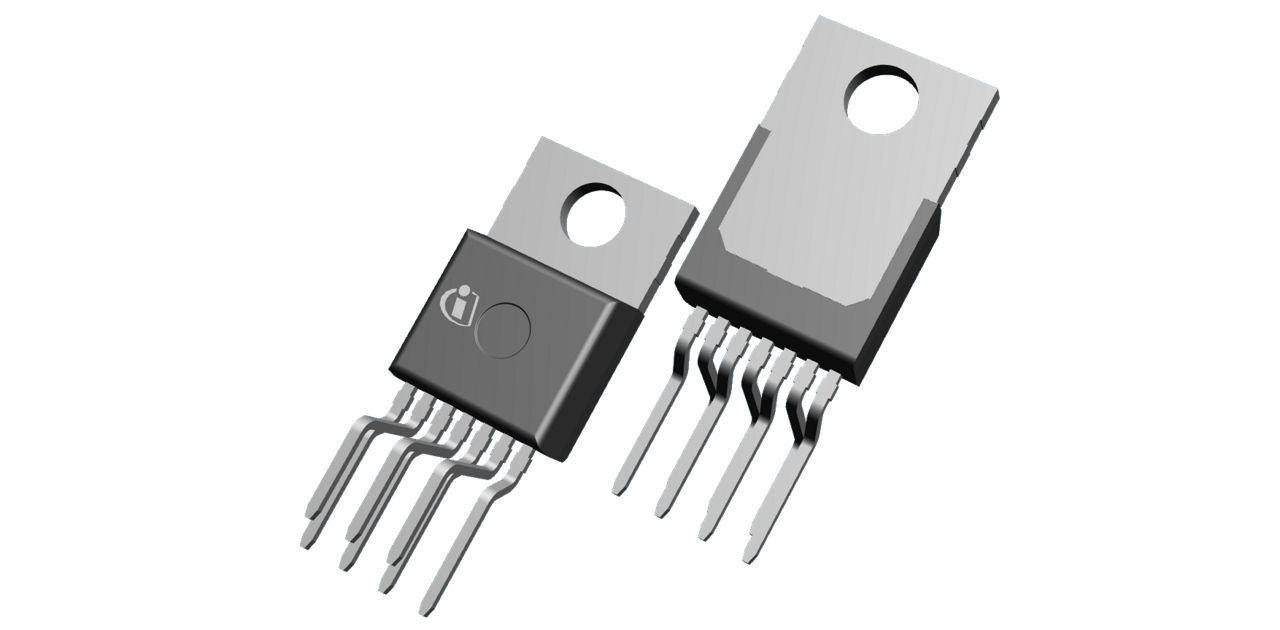

This component is suitable for loads with high inrush current, such as lamps and motors, and can replace electromechanical relays and fuses. It is housed in a PG-TO220-7-11 package, suitable for various mounting applications.
The BTS50085-1TMB is AEC qualified and RoHS3 compliant, making it a reliable choice for automotive power switching applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5.0 to 58 V.
The on-state resistance is 9 mΩ.
The load current (ISO) is 44 A.
The short circuit current limitation is 90 A.
It is supplied in the PG-TO220-7-11 package.
