Mfr Part #:

BTS50015-1TAD

Mfr Name: Infineon

The Infineon BTS50015-1TAD is a single-channel smart high-side power switch designed for high current loads. It offers robust protection and diagnostic features.

✓ Total Stock: 2,340 pcs

$ Price Range: $0.32

BTS50015-1TAD Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	2,340 pcs On Request	2340 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BTS50015-1TAD Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
AEC Qualified	Yes
Automotive Grade	Yes
Load Type	Resistive, Inductive, Capacitive
Mounting Type	Surface Mount
SVHC Present	Not Present
Voltage	8V to 18V

View Similar Products (0)

BTS50015-1TAD Description

Short technical summary and product information.

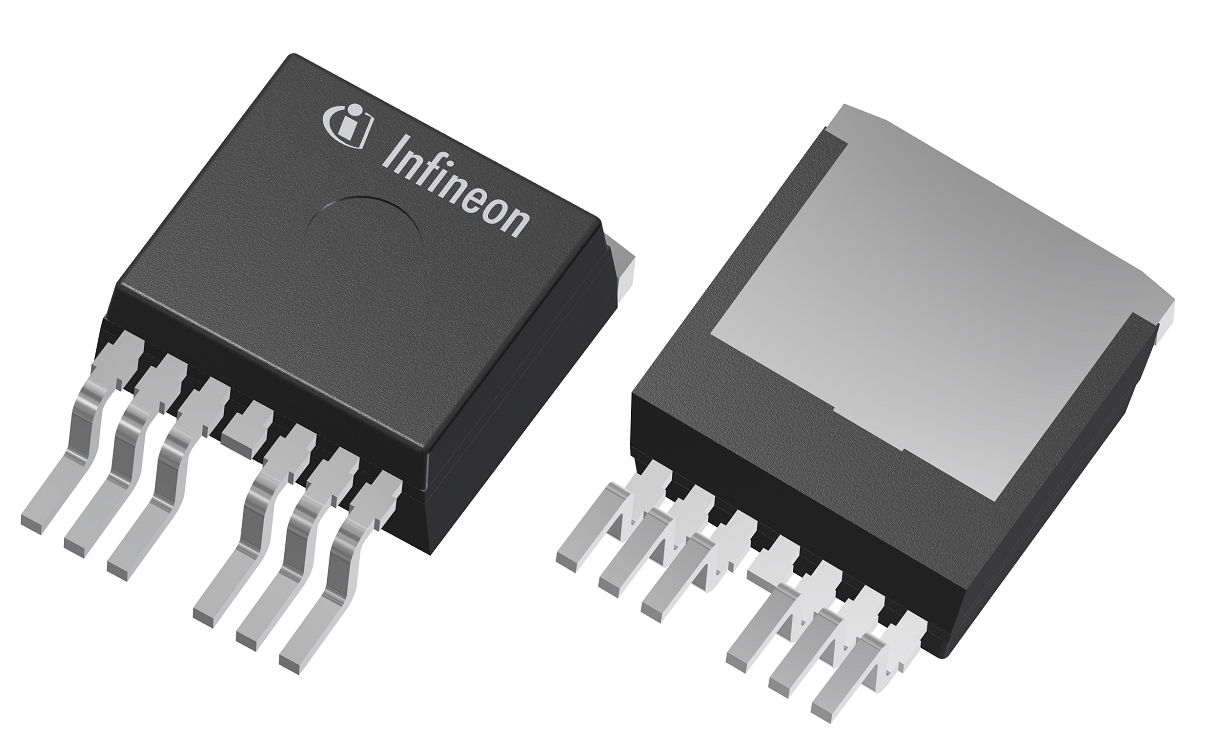

The Infineon BTS50015-1TAD is a 1.5 mΩ single-channel Smart High-Side Power Switch. It is embedded in a PG-TO-263-7-10 package and provides integrated protective functions and diagnosis, including Infineon® ReverSave™ functionality.

This device is built with an N-channel power MOSFET and charge pump, specifically engineered to drive high current loads up to 80 A. It is suitable for applications such as switched battery couplings, power distribution switches, heaters, and glow plugs in demanding automotive environments. The switch supports resistive, inductive, and capacitive loads and is compatible with PWM applications at low frequencies.

Key electrical characteristics include an operating voltage range of 8V to 18V, with an extended supply voltage capability up to 28V. It features a low standby current of 18 µA maximum at 85°C and a maximum ON-state resistance of 3 mΩ at 150°C. The device also incorporates embedded diagnostic functions like proportional load current sense and protection functions such as overtemperature and short circuit protection with latch.

The BTS50015-1TAD is AEC Qualified and RoHS compliant, making it a reliable choice for automotive applications requiring high current switching and integrated protection.

BTS50015-1TAD Quick Information

Product Type: Smart High-Side Power Switch

Series: BTS50015-1TAD

Canonical Name: Infineon BTS50015-1TAD Smart High-Side Power Switch

Subcategory: Power Distribution Switches, Load Drivers

BTS50015-1TAD Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BTS50015-1TAD Estimated Pricing

Qty	Low	High
1+	$0.32	$0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

BTS50015-1TAD Features

Single channel smart high-side power switch.
Operates from 8V to 18V supply voltage.
Low 1.5mOhm typical ON-resistance.
Supports high current loads up to 80A.
Includes overtemperature and short circuit protection.

BTS50015-1TAD Applications

Suitable for automotive applications.
Drives resistive, inductive, capacitive loads.
Used for power distribution switches.
Ideal for heating system control.
Supports start-stop power supply switching.

BTS50015-1TAD FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating voltage range of the BTS50015-1TAD?

The nominal operating voltage range is 8V to 18V, with an extended range of 3.2V to 28V including dynamic undervoltage capability.

What is the typical on-state resistance?

1.5mΩ typical, with a maximum of 3mΩ at 150°C junction temperature.

What is the maximum load current?

Up to 80A.

What package is the BTS50015-1TAD available in?

PG-TO-263-7-10 surface mount package.

Does it support reverse battery protection?

Yes, up to -16V for 2 minutes at 25°C.

What is the short circuit current threshold?

Minimum 135A.

What types of loads can it drive?

Resistive, inductive, and capacitive loads.
