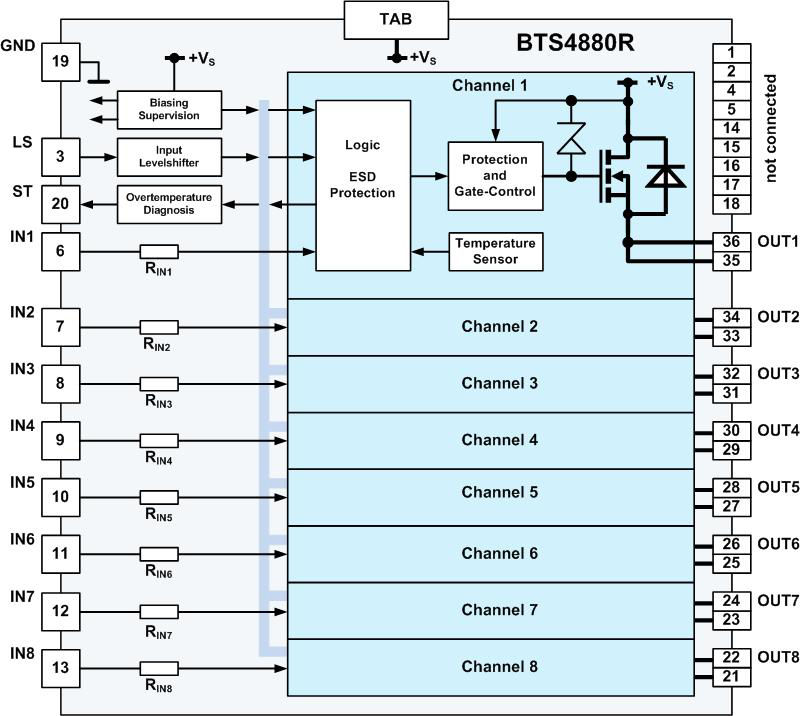

BTS4880R The Infineon Technologies BTS4880R is an 8-channel smart high-side switch designed for automotive power applications. It features 200mOhm on-resistance and 625mA current capability per channel.
Mfr Part #:

BTS4880R

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies BTS4880R is an 8-channel smart high-side switch designed for automotive power applications. It features 200mOhm on-resistance and 625mA current capability per channel.
✓ Total Stock: 4,512 pcs
$ Price Range: $0.32

BTS4880R Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,012 pcs
On Request
1012 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BTS4880R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

BTS4880R Description

Short technical summary and product information.

The Infineon Technologies BTS4880R is a versatile 8-channel smart high-side switch designed for automotive power applications. Each of the eight N-channel outputs can handle up to 625mA with a typical on-resistance of 150mOhm, and a maximum of 200mOhm as specified in the datasheet.



This device operates with a 24V supply voltage and is suitable for a wide range of operating temperatures from -40°C to 125°C. It includes essential fault protection features such as current limiting, over-temperature protection, and over-voltage protection, making it a robust choice for demanding environments.



The BTS4880R is available in a Surface Mount package, specifically a 36-BSSOP with an exposed pad, identified by the supplier package code PG-DSO-36-12. Its logic interface allows for straightforward integration into control systems.

BTS4880R Quick Information

Product Type: Power Distribution Switch
Series: PROFET
Canonical Name: BTS4880R Smart Power High-Side Switch
Subcategory: Load Drivers

BTS4880R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BTS4880R Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

BTS4880R Features

  • Eight N-channel high-side outputs
  • Low 150mOhm typical on-resistance
  • 625mA continuous current per channel
  • 24V operating voltage capability
  • Integrated fault protection features

BTS4880R Applications

  • Automotive power distribution
  • Load driving applications
  • Smart power switching
  • Motor control circuits
  • General purpose switching

BTS4880R FAQs

7 frequently asked questions generated from this part’s specifications.
How many outputs does the BTS4880R have?

The BTS4880R has eight outputs.

What is the typical on-resistance of the BTS4880R?

The typical on-resistance (Rds On) for the BTS4880R is 150mOhm.

What is the continuous current limit per channel for the BTS4880R?

The BTS4880R has a continuous current limit of 625mA per channel.

What is the operating voltage for the BTS4880R?

The BTS4880R operates at 24V.

What is the operating temperature range of the BTS4880R?

The operating temperature range for the BTS4880R is -40°C to 125°C.

What type of package is the BTS4880R in?

The BTS4880R is supplied in a 36-BSSOP (0.433", 11.00mm Width) Exposed Pad package.

What fault protection features are included in the BTS4880R?

The BTS4880R includes current limiting (fixed), over-temperature, and over-voltage fault protection.
