| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |||||||||
|
7,456 pcs
$0.50
|
7456 pcs |
$0.50
|
1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
1,388 pcs
|
1388 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Halogen Free | |
| Input Type | |
| Interface | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The Infineon Technologies BTS4140NHUMA1 is a smart high-side power switch designed for general-purpose applications. This N-channel device operates with an output configuration as high-side and features a single output.
Key electrical characteristics include a typical on-resistance (Rds On) of 1 Ohm and a current rating of 200mA. The switch type is classified as General Purpose with an On/Off interface. It also incorporates fault protection mechanisms such as current limiting, over-temperature protection, and over-voltage protection, along with an auto-restart feature.

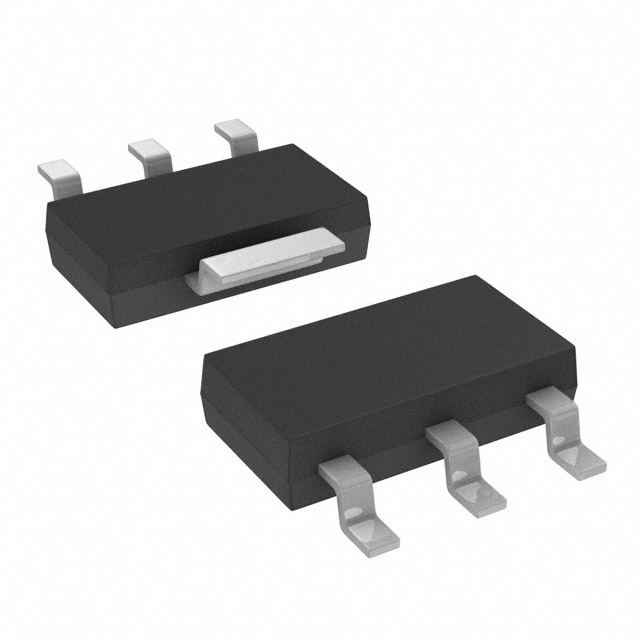

The device is specified for an operating temperature range of -40°C to 150°C (TJ). It is available in a PG-SOT223-4 package, with the broader package classification being TO-261-4 or TO-261AA. The mounting type is surface mount, making it suitable for various PCB designs.
This power switch is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.55 | $1.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 150°C (junction temperature).
The BTS4140NHUMA1 is available in a TO-261-4, TO-261AA package, with supplier device package PG-SOT223-4.
N-Channel.
High side.
200mA.
Current limiting (fixed), over temperature, and over voltage.
Surface mount.
