| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,781 pcs
|
30781 pcs | On Request | 1 | On Request | On Request | 1131+ | On Request | On Request | |
|
3,235 pcs
|
3235 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
850 pcs
|
850 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The Infineon Technologies BTS3408G is a dual-channel low-side power switch featuring D-MOS output stages. It is designed for driving various load types including resistive, inductive, and capacitive loads in automotive and industrial applications. The device operates with a supply voltage from 4.5V to 60V and provides a nominal output current of 0.55A per channel.
Key features include logic-level input compatibility with 3V microcontrollers, thermal shutdown with auto-restart, overload protection, short circuit protection, and open load detection. The BTS3408G also offers a general fault flag and a freeze functionality for multiplexing. It is suitable for applications such as line drivers, stepper motor drivers, and lamp drivers, replacing electromechanical relays and discrete circuits.
This component is available in a surface mount package, specifically the 8-SOIC (0.154", 3.90mm Width) or P-DSO-8-3. The operating temperature range is -40°C to 150°C (TJ). Its design is based on Infineon's Smart Power Technology (SPT).
With its integrated protection features and versatile driving capabilities, the BTS3408G is a robust solution for power switching applications requiring reliable performance and protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5 V to 60 V.
The operating temperature range is -40°C to 150°C.

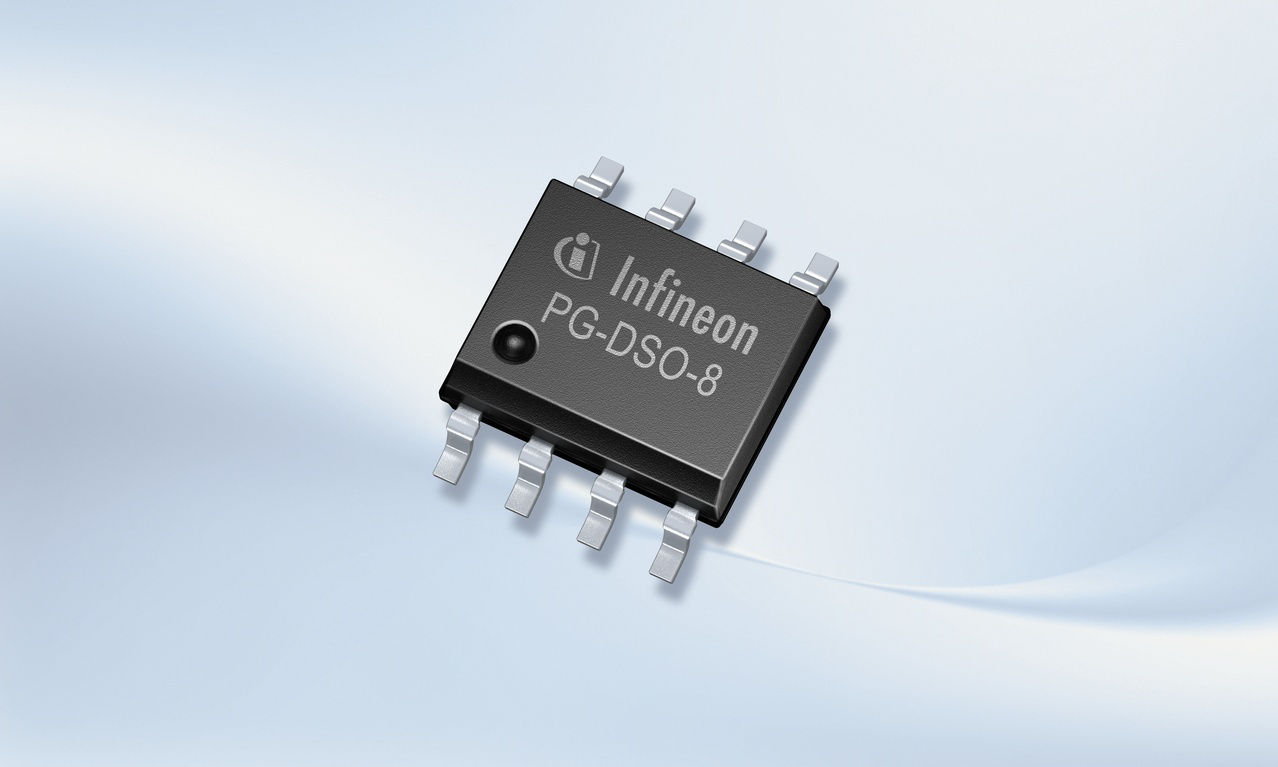

The BTS3408G is available in a P-DSO-8-3 (8-SOIC) surface mount package.
The typical on-state resistance is 550 mOhm.
The nominal output current per channel is 0.55 A (550 mA).
The maximum switching frequency is 50 kHz.
The clamping energy rating is 800 mJ.
